CORTIZO · Thermally broken mixed window
COR Galicia Premium
Aluminium outside. Wood inside.
A mixed system with CORTIZO exterior finishes and interior wood species including American oak, sapele and mellis pine.

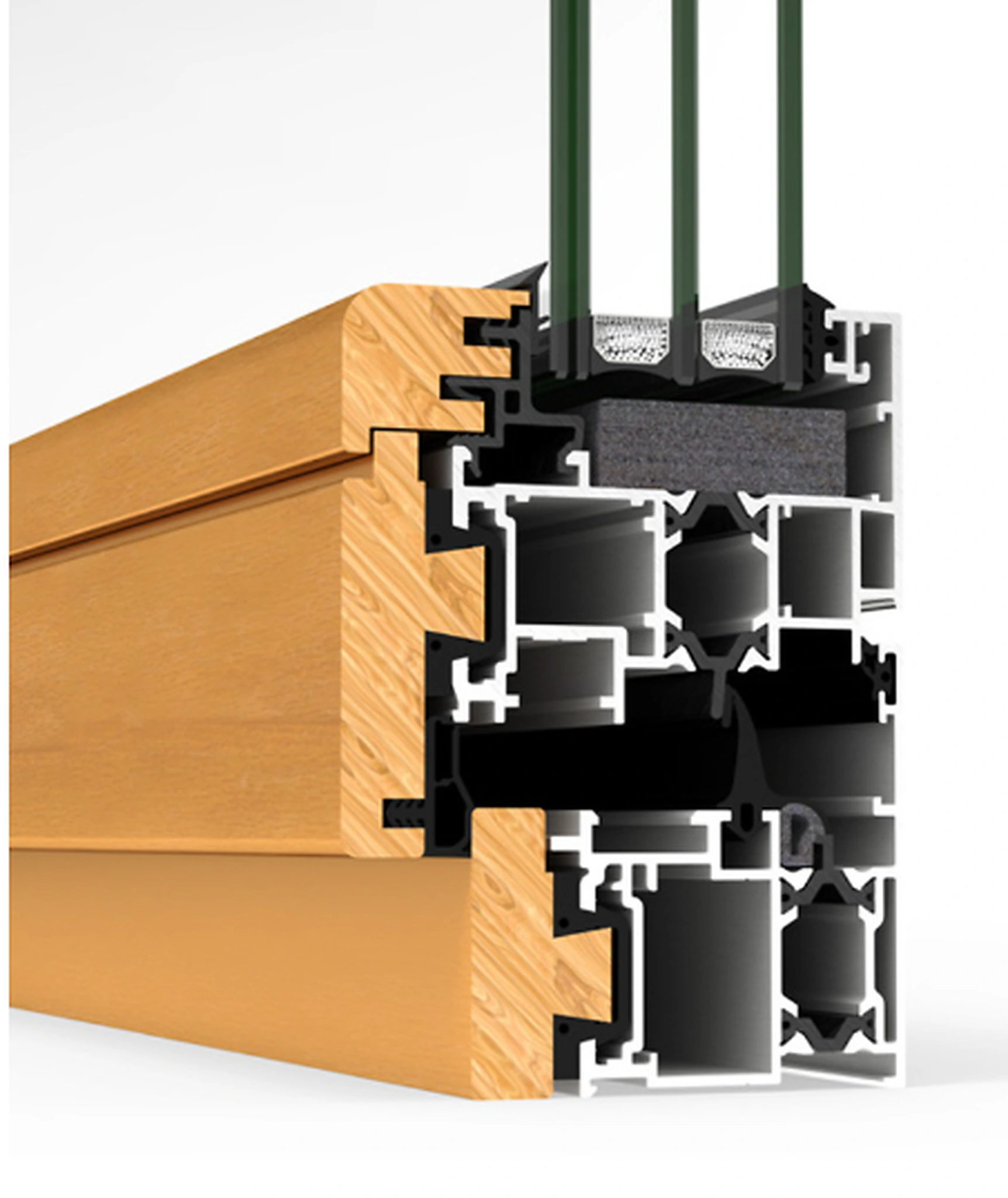

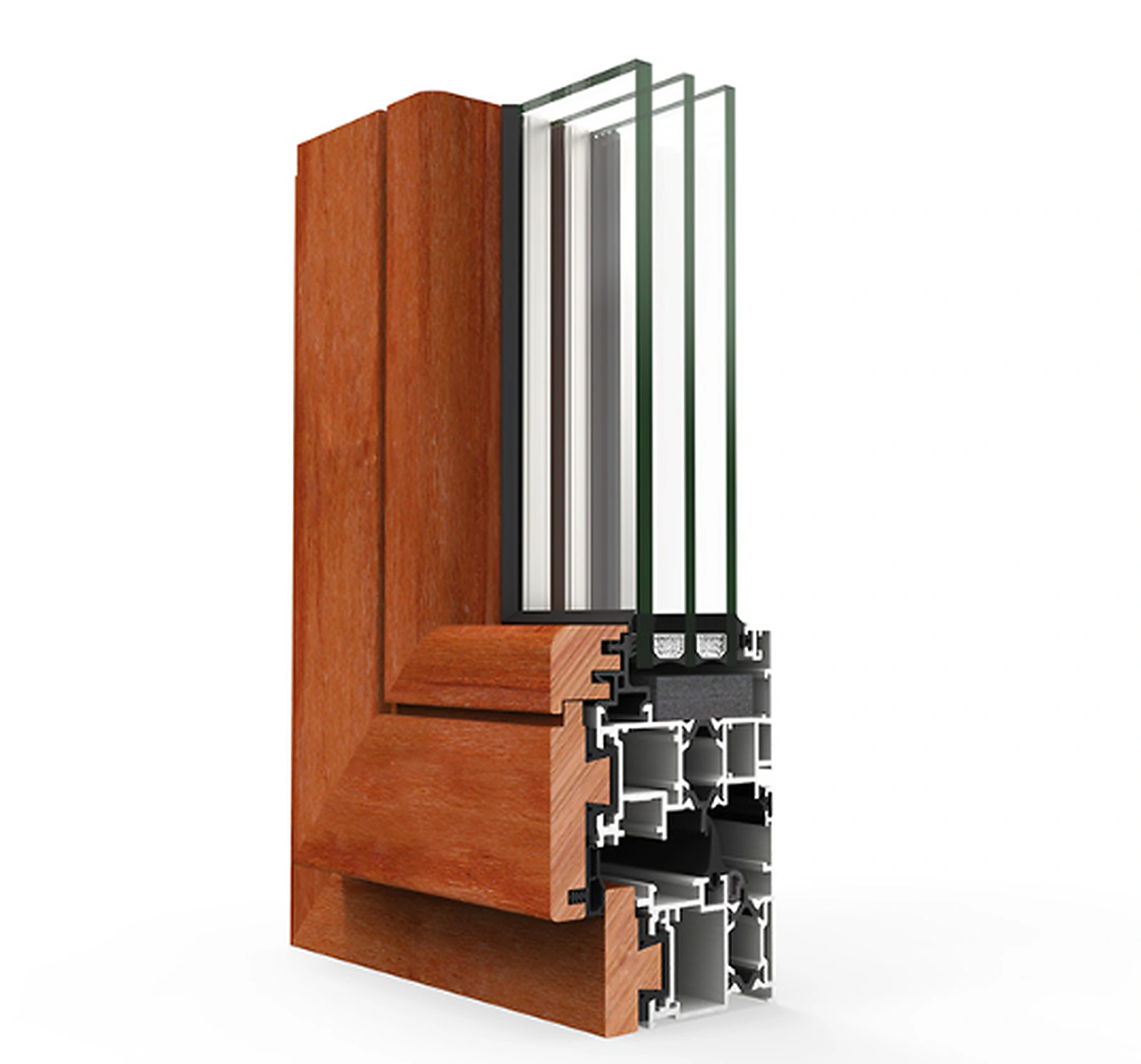

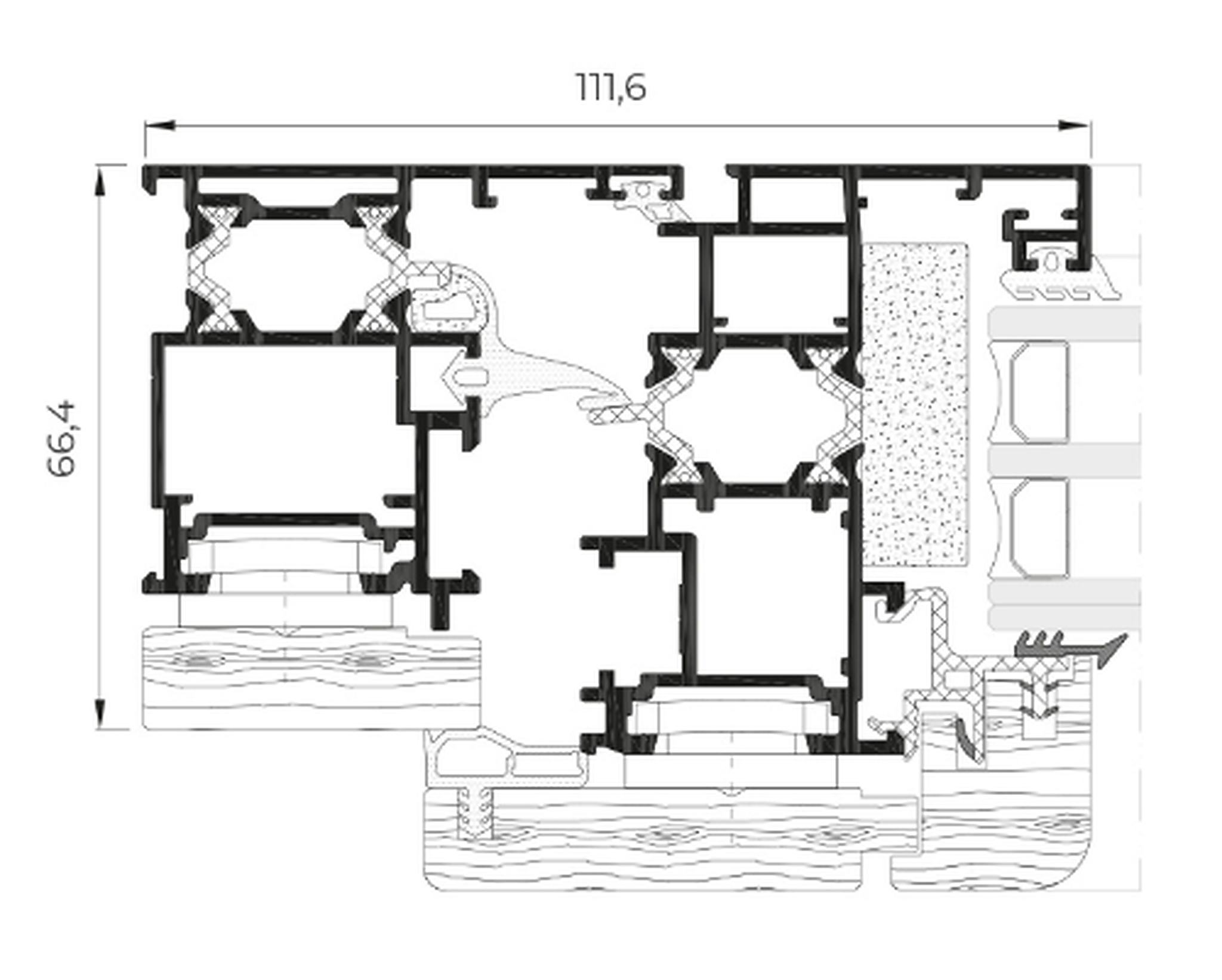

Profile sectionCOR Galicia Premium
Features
Profile section1 / 5
| Thermal value | Uw ≥ 1.1 W/m²K | |
|---|---|---|
| Acoustic insulation | Rw 40 dB | |
| Water tightness | E1050 | |
| Wind resistance | C5 |
Values depend on dimensions, glazing and configuration. The final specification requires technical validation before quotation.
Profile dimensions+
| Frame depth | 66.4 mm | |
|---|---|---|
| Sash depth | 85.3 mm | |
| Profile thickness | 1.5 / 1.6 mm |
Glazing and sealing+
| Sash glazing | 18–40 mm | |
|---|---|---|
| Frame glazing | 8–30 mm |
Construction limits+
| Maximum sash size | 1400 × 2400 mm | |
|---|---|---|
| Maximum sash weight | 100 kg |
- Thermal break where specified
- Powder coating, anodising and bicolour options

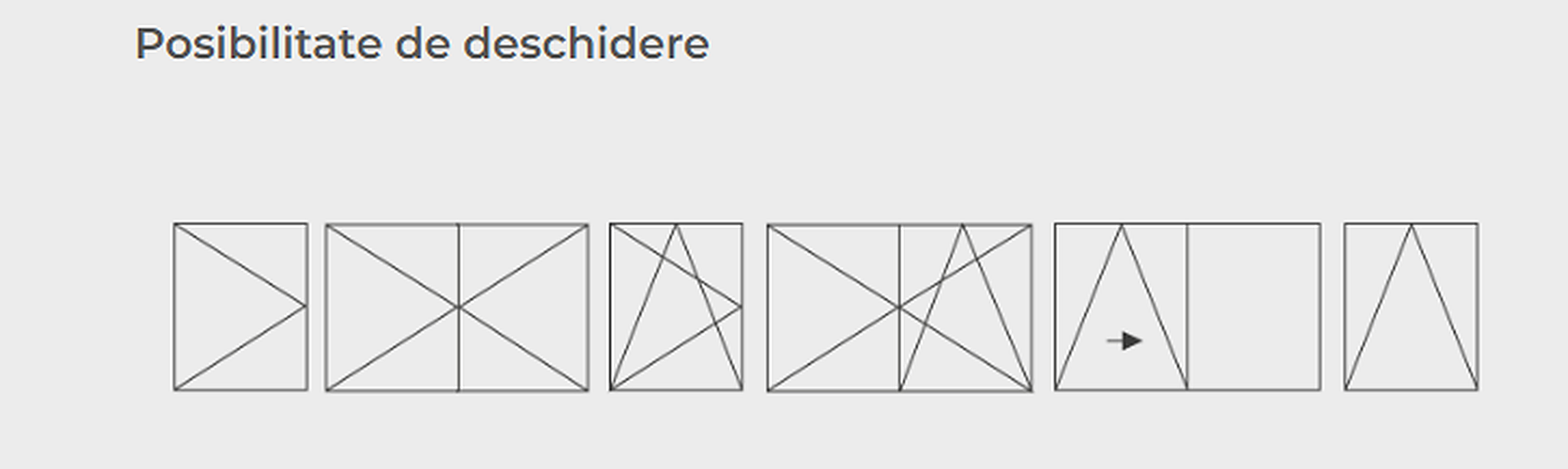

- Typologies and limits depend on configuration
- Technical validation before quotation
Finishes
Find your finish.
Painted / RAL
Traffic White
RAL 901601 / 10
Indicative palette, not live stock. Confirm the code, texture and compatibility with a physical sample for the selected system.
Complete palettes
Review the colour documents.
On-screen colour is indicative. Confirm the final choice with a physical sample and the technical configuration.
