CORTIZO · Industrial window
COR 80 Industrial
Built for severe climate demands.

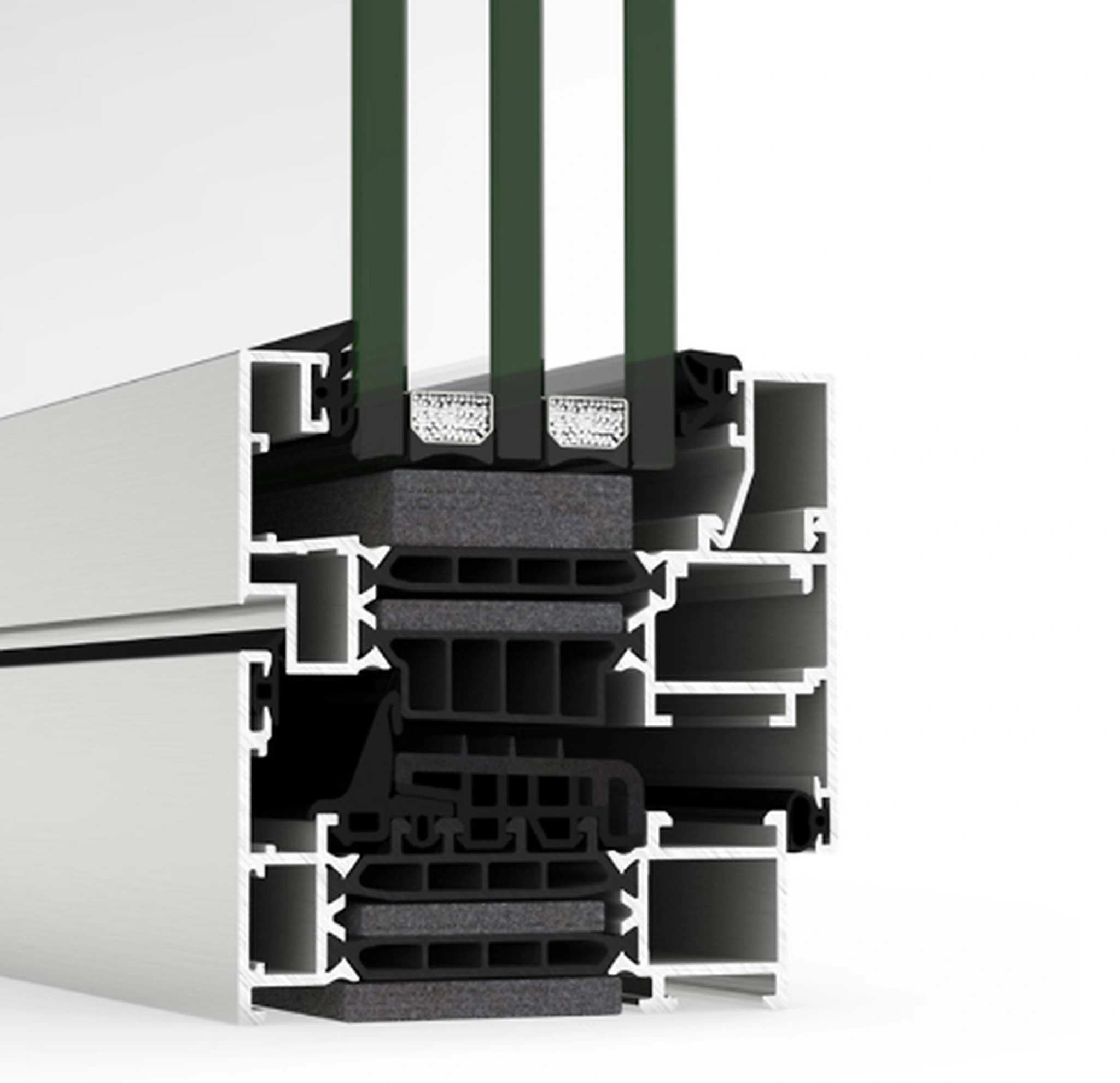

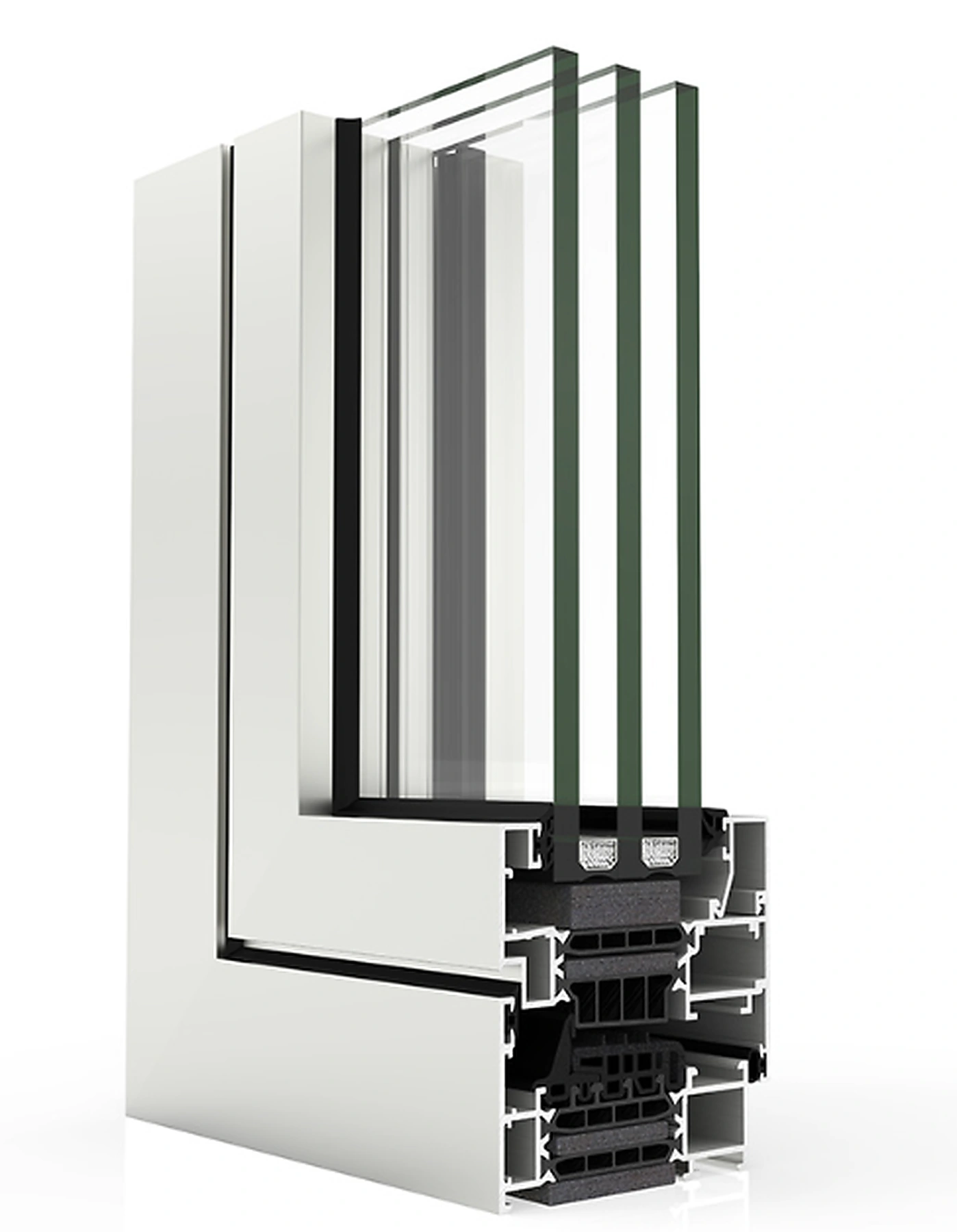

An 80 mm frame system with 45 mm tubular polyamides and polyolefin inserts in critical frame, sash and glazing zones.

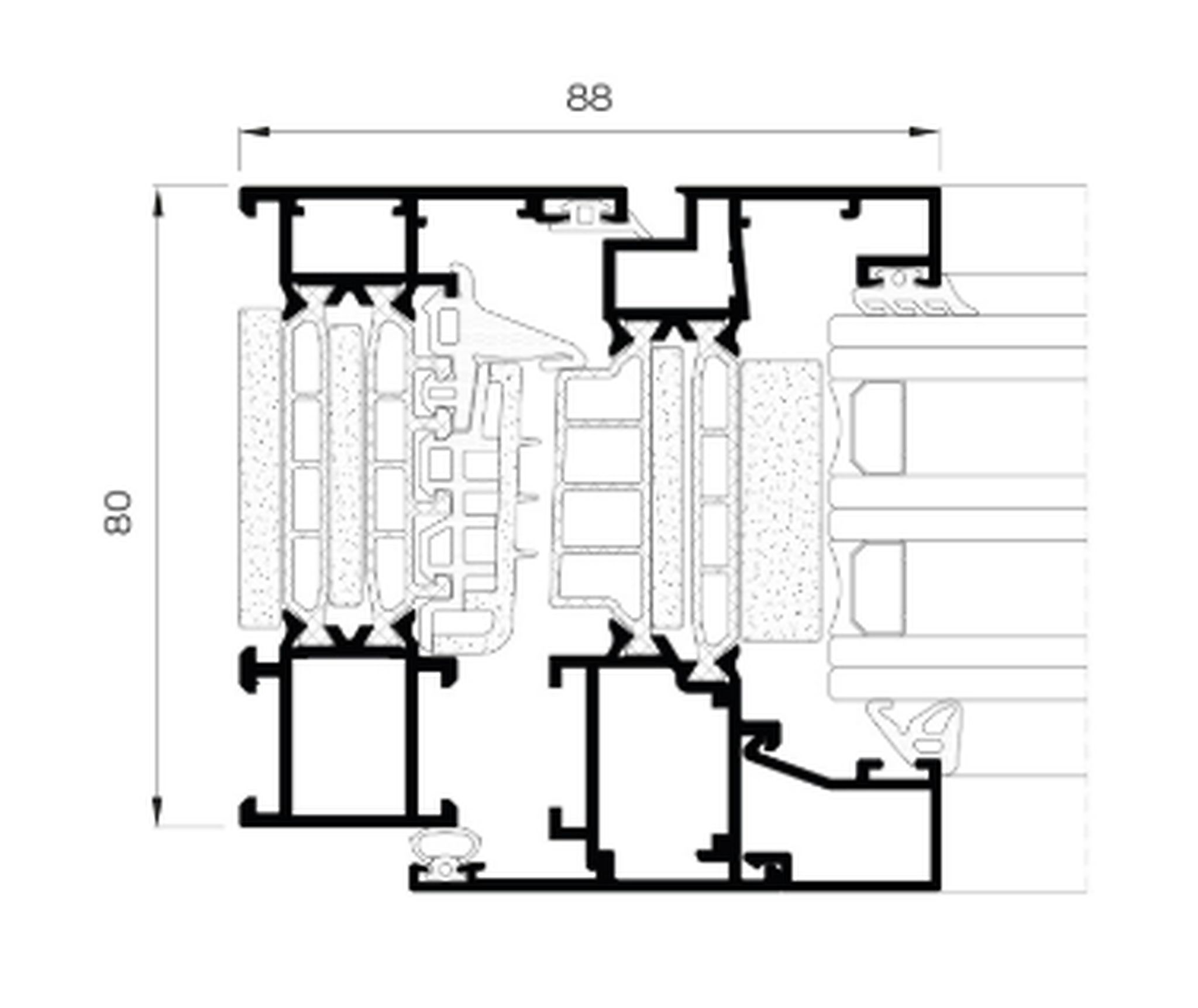

Profile sectionCOR 80 Industrial
Features
Profile section1 / 3
| Thermal value | Uw ≥ 0.71 W/m²K | |
|---|---|---|
| Acoustic insulation | Rw 46 dB | |
| Water tightness | E1950 | |
| Security | RC2 | |
| Air permeability | Class 4 | |
| Wind resistance | Class C5 |
Values depend on dimensions, glazing and configuration. The final specification requires technical validation before quotation.
Profile dimensions+
| Frame depth | 80 mm | |
|---|---|---|
| Sash depth | 88 mm | |
| Visible frame / sash width | 73 / 16 mm | |
| Polyamide / thermal break | 45 mm | |
| Profile thickness | 1.5 mm |
Construction limits+
| Maximum sash size | 1500 × 2600 mm | |
|---|---|---|
| Maximum sash weight | 160 kg |
- Thermal break where specified
- Powder coating, anodising and bicolour options
- Typologies and limits depend on configuration
- Technical validation before quotation
Finishes
Find your finish.
Painted / RAL
Traffic White
RAL 901601 / 10
Indicative palette, not live stock. Confirm the code, texture and compatibility with a physical sample for the selected system.
Complete palettes
Review the colour documents.
On-screen colour is indicative. Confirm the final choice with a physical sample and the technical configuration.
