REHAU · PVC renovation system
Euro-Design 70
Versatility at a proven 70 mm depth.
A 70 mm PVC system for renovation and conversion, with a choice of shapes, colours and configurations for the project.

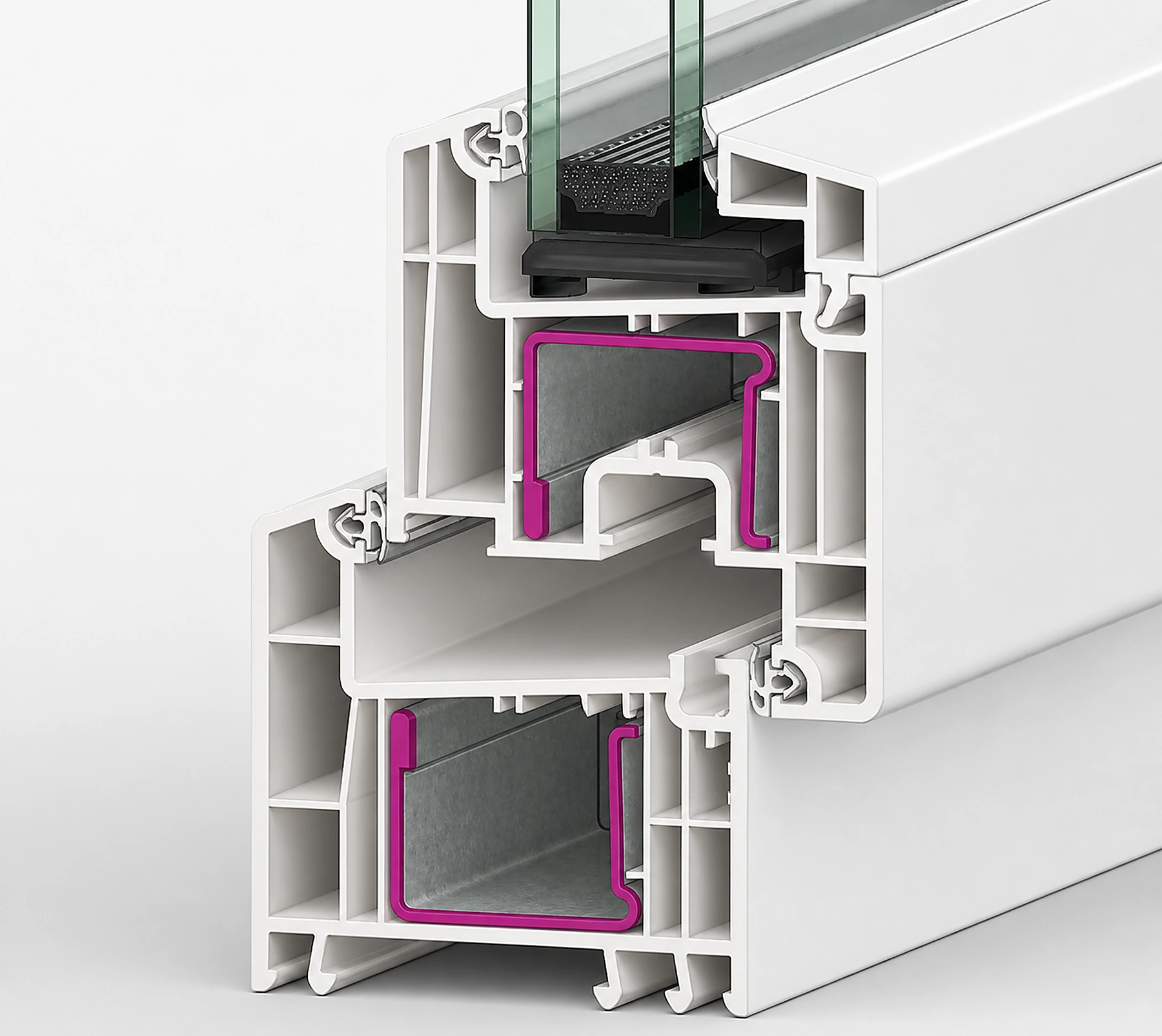

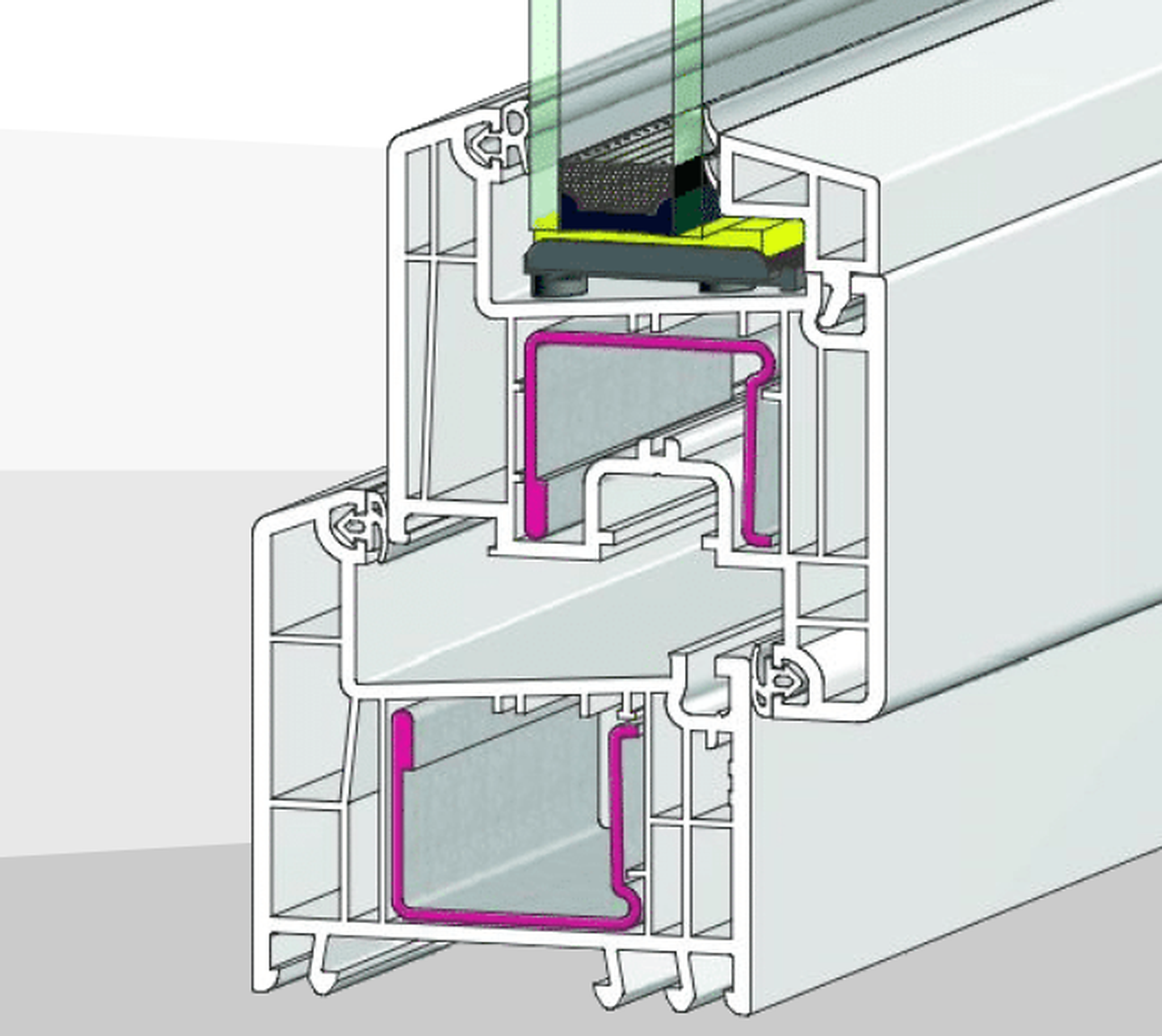

Profile sectionEuro-Design 70
Features
| Depth | 70 mm | |
|---|---|---|
| Chambers | 5 | |
| Thermal value | Uf 1.3 W/m²K | |
| Acoustic insulation | Rw 45 dB | |
| Air permeability | Class 4 | |
| Water tightness | E900 | |
| Wind resistance | C5 / B5 | |
| Burglary resistance | RC2 |
Performance and dimensions are confirmed for the selected configuration. Consult the system documents, including their conditions and scope.

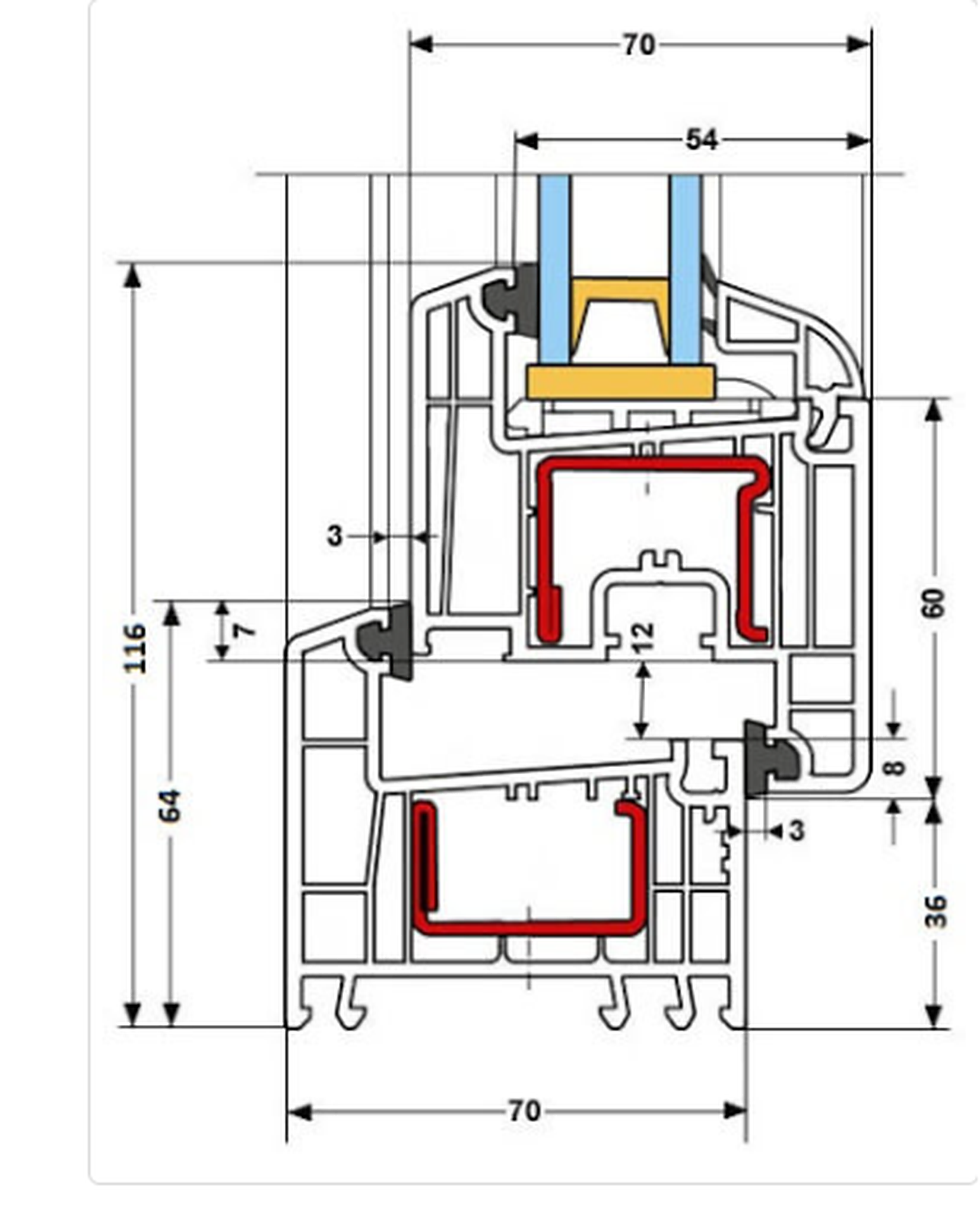

Profile dimensions+
| Frame / sash depth | 70 mm | |
|---|---|---|
| Insulation chambers | 5 |
Glazing and sealing+
| Glazing thickness | 10–42 mm |
|---|
- Made to project dimensions
- Double or triple glazing, by system
- Coordinated colours and finishes
- Final configuration is technically validated
Finishes
Find your finish.
REHAU · 25 foils
Midnight Black (matt)
REHAU 1980L · ≈ RAL 9005Indicative palette, not live stock. Confirm the code, texture and compatibility with a physical sample for the selected system.
Complete palettes
Review the colour documents.
25 foils for window and door profiles. Romanian-market availability is confirmed with the quotation.
Open PDF ↗
Colour reference for painted options, available on request across all eligible profiles.
Open PDF ↗On-screen colour is indicative. Confirm the final choice with a physical sample and the technical configuration.
