SALAMANDER · Premium PVC system
bluEvolution 82
Six chambers for efficient projects.
An 82 mm, 6-chamber system with AD/MD sealing and 24–52 mm glazing for high-efficiency and security projects.

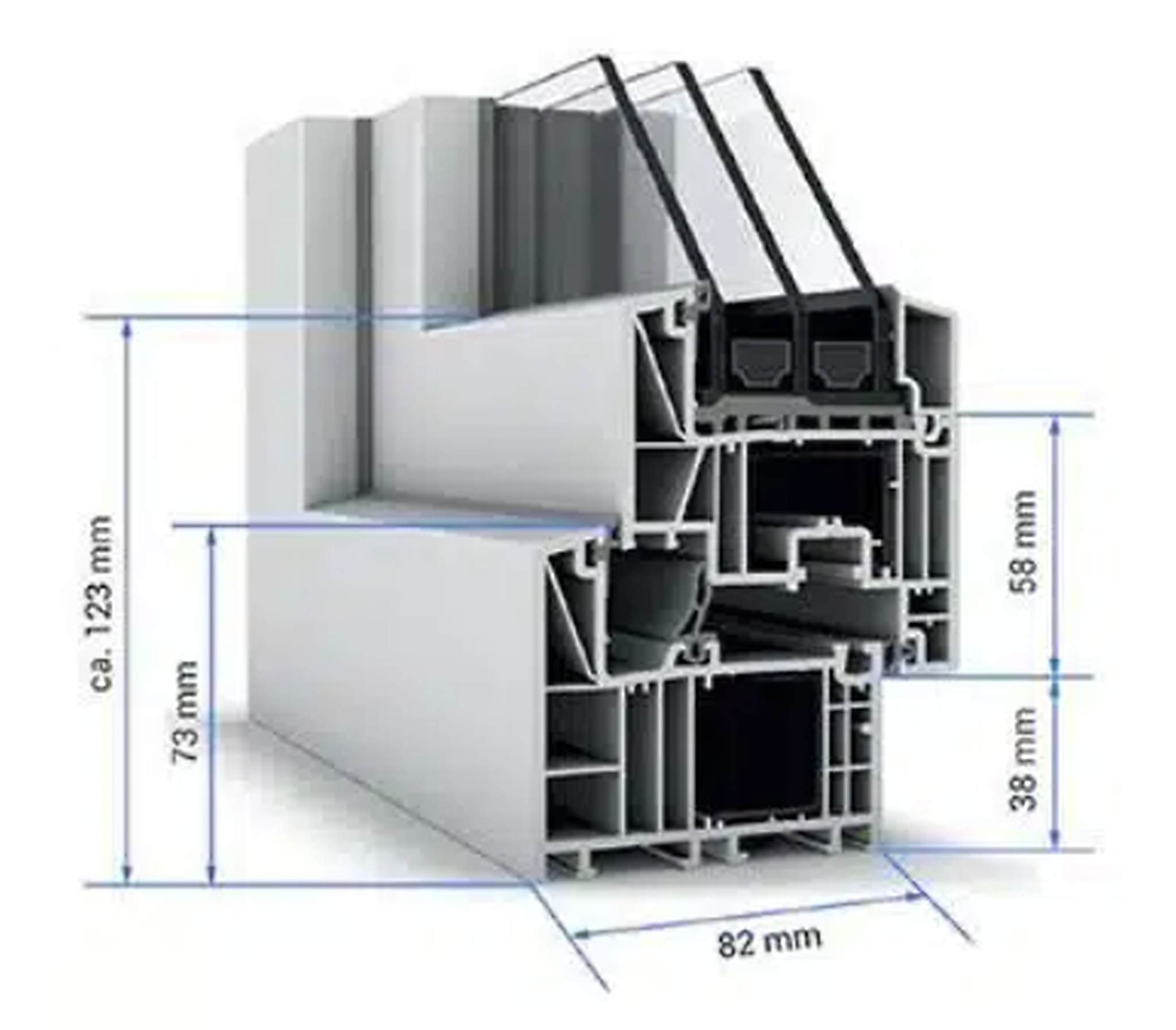

Profile sectionbluEvolution 82
Features
| Depth | 82 mm | |
|---|---|---|
| Chambers | 6 | |
| Thermal value | Uw 0.65–0.75 W/m²K | |
| Acoustic insulation | Rw 46–47 dB | |
| Burglary resistance | RC2 / RC3 |
Values depend on dimensions, glazing and configuration. The final specification requires technical validation before quotation.
Profile dimensions+
| Frame / sash depth | 82 mm | |
|---|---|---|
| Visible frame / sash width | 73 / 69 mm | |
| Insulation chambers | 6 | |
| Profile thickness | outer wall 3 mm · reinforcement 2–3 mm |
Glazing and sealing+
| Glazing thickness | 24–52 mm | |
|---|---|---|
| Sealing levels | 2 / 3 |
Construction limits+
| Maximum sash size | window 1500 × 2500 mm · balcony 1600 × 2500 mm · entrance 1200 × 2400 mm |
|---|
- Made to project dimensions
- Double or triple glazing, by system
- Coordinated colours and finishes
- Final configuration is technically validated
Finishes
Find your finish.
Salamander · 40 decors
Golden Oak
51Indicative palette, not live stock. Confirm the code, texture and compatibility with a physical sample for the selected system.
Complete palettes
Review the colour documents.
40 standard and made-to-order decors. Samples and current availability are confirmed before production.
Open PDF ↗
Colour reference for painted options, available on request across all eligible profiles.
Open PDF ↗On-screen colour is indicative. Confirm the final choice with a physical sample and the technical configuration.
Continuity starts at the corner.
V-PERFECT is designed for a continuous PVC joint appearance, without the visible outer bead of conventional welding. Explore the detail in smooth and wood-effect finishes.
