DECEUNINCK · Wide-frame PVC renovation profile
Elegant INFINITY 115
Clean integration for renovation openings.
An Elegant INFINITY variant with a 115 mm frame, 80 mm sash, 25 mm rebate and glazing up to 48 mm.

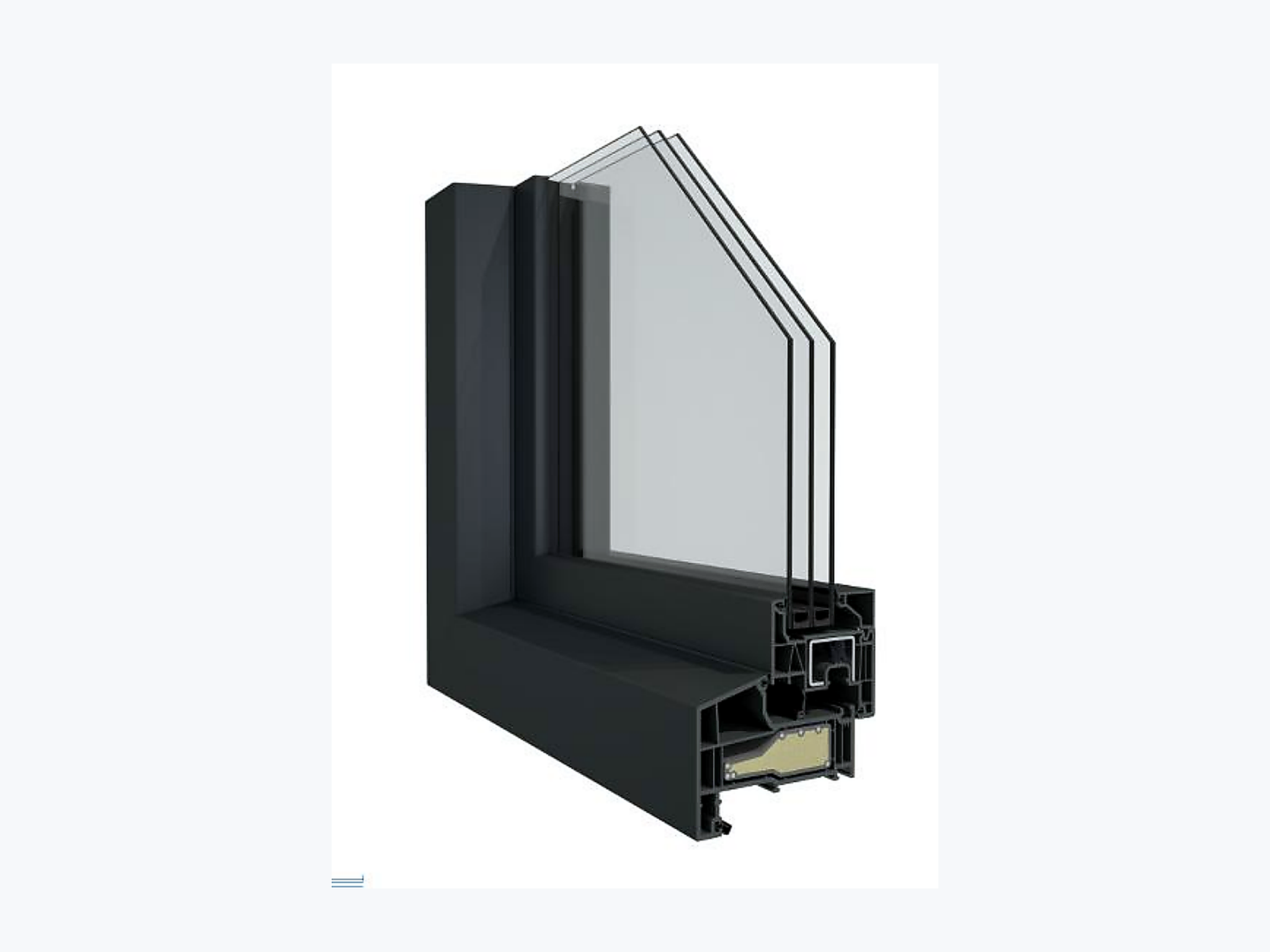

Profile sectionElegant INFINITY 115
Features

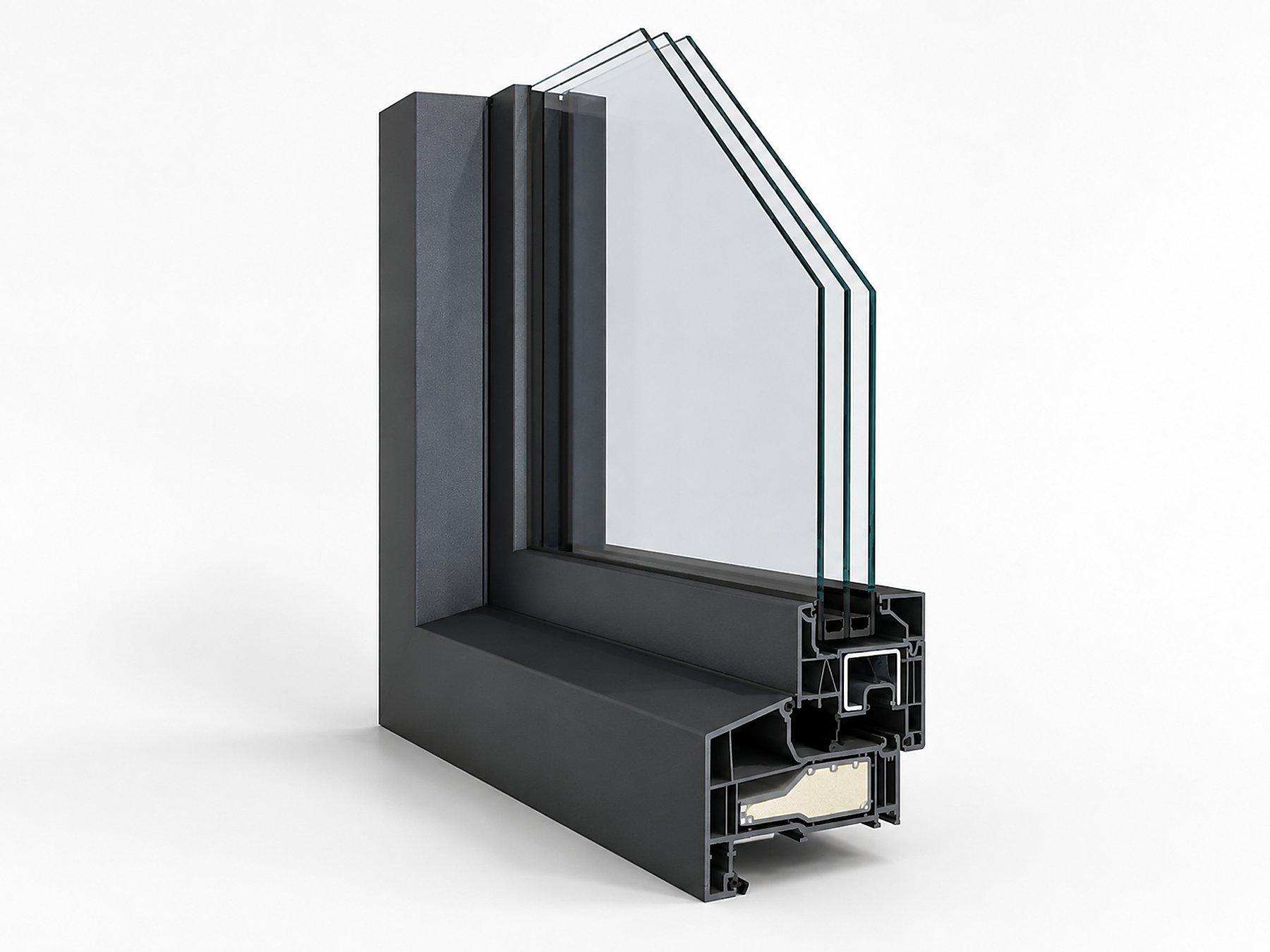

Profile section1 / 2
| Depth | 115 / 80 mm | |
|---|---|---|
| Thermal value | Uw from 1.1 W/m²K | |
| Glazing | 24–48 mm | |
| Rebate | 25 mm | |
| Thermal transmittance | Uw from 1.10 W/m²K |
Values depend on dimensions, glazing and configuration. The final specification requires technical validation before quotation.
Profile dimensions+
| Frame depth | 115 mm | |
|---|---|---|
| Sash depth | 80 mm | |
| Rebate height | 25 mm |
Glazing and sealing+
| Frame glazing | 24 / 44 mm | |
|---|---|---|
| Sash glazing | 28 / 48 mm |
- Made to project dimensions
- Double or triple glazing, by system
- Coordinated colours and finishes
- Final configuration is technically validated
Finishes
Find your finish.
MAR&PET Standard · 14
Core white
01 / 14
Indicative palette, not live stock. Confirm the code, texture and compatibility with a physical sample for the selected system.
Complete palettes
Review the colour documents.
On-screen colour is indicative. Confirm the final choice with a physical sample and the technical configuration.
