SALAMANDER · 5-chamber PVC system
proEvolution 72 MD
Slim profile. Well-measured comfort.
A 72 mm, 5-chamber system in AD/MD versions, for 24–48 mm double or triple glazing and up to 46 dB acoustic insulation.

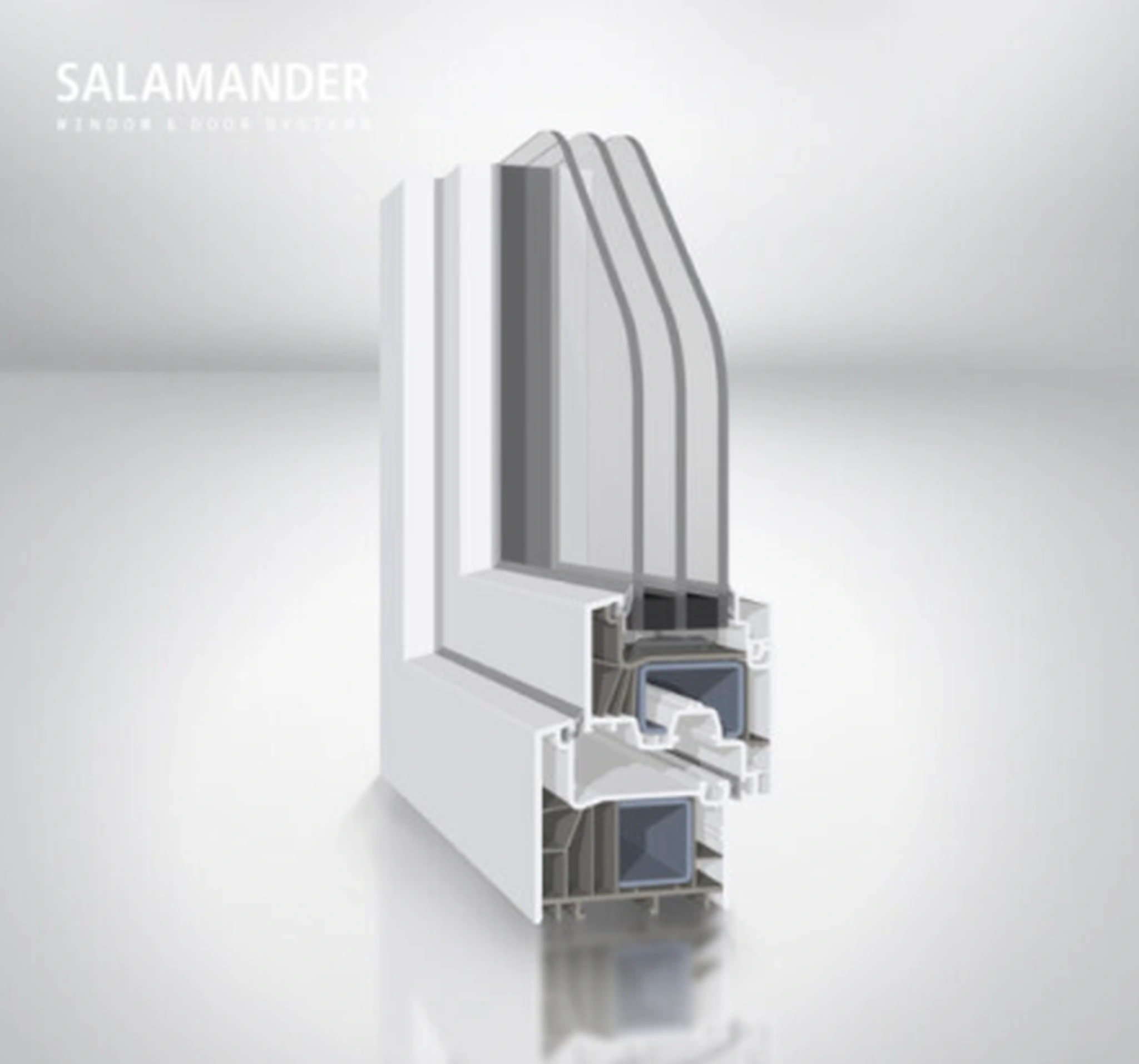

Profile sectionproEvolution 72 MD
Features
| Depth | 72 mm | |
|---|---|---|
| Chambers | 5 | |
| Thermal value | Uf 1.1 W/m²K | |
| Acoustic insulation | Rw 46 dB | |
| Burglary resistance | RC2 |
Values depend on dimensions, glazing and configuration. The final specification requires technical validation before quotation.

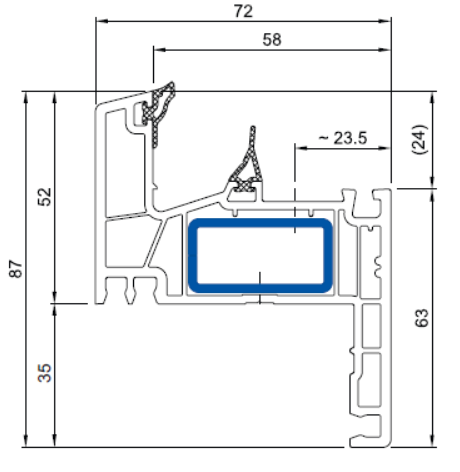

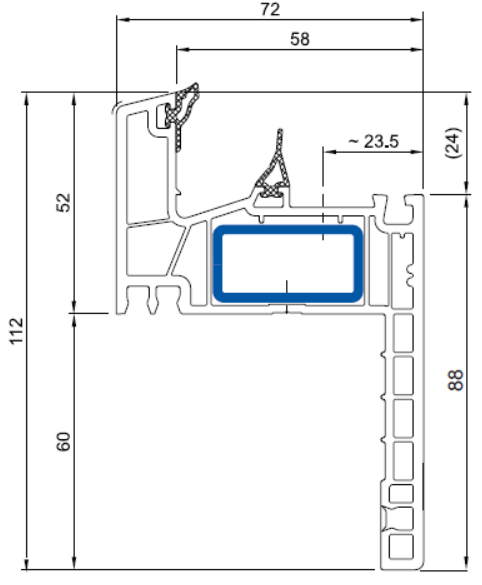

Profile dimensions+
| Frame / sash depth | 72 mm | |
|---|---|---|
| Visible frame / sash width | 113 mm | |
| Insulation chambers | 5 | |
| Profile thickness | reinforcement 1.5 mm window / 2 mm door |
Glazing and sealing+
| Glazing thickness | 24–48 mm |
|---|
- Made to project dimensions
- Double or triple glazing, by system
- Coordinated colours and finishes
- Final configuration is technically validated
Finishes
Find your finish.
Salamander · 40 decors
Golden Oak
51Indicative palette, not live stock. Confirm the code, texture and compatibility with a physical sample for the selected system.
Complete palettes
Review the colour documents.
40 standard and made-to-order decors. Samples and current availability are confirmed before production.
Open PDF ↗
Colour reference for painted options, available on request across all eligible profiles.
Open PDF ↗On-screen colour is indicative. Confirm the final choice with a physical sample and the technical configuration.
Continuity starts at the corner.
V-PERFECT is designed for a continuous PVC joint appearance, without the visible outer bead of conventional welding. Explore the detail in smooth and wood-effect finishes.
