CORTIZO · Hidden-hinge window
COR 60 Hidden Hinge
Only 63 mm visible outside.
A reduced-sightline system with 24–25 mm polyamides, designed for light, sealing and concealed hardware.

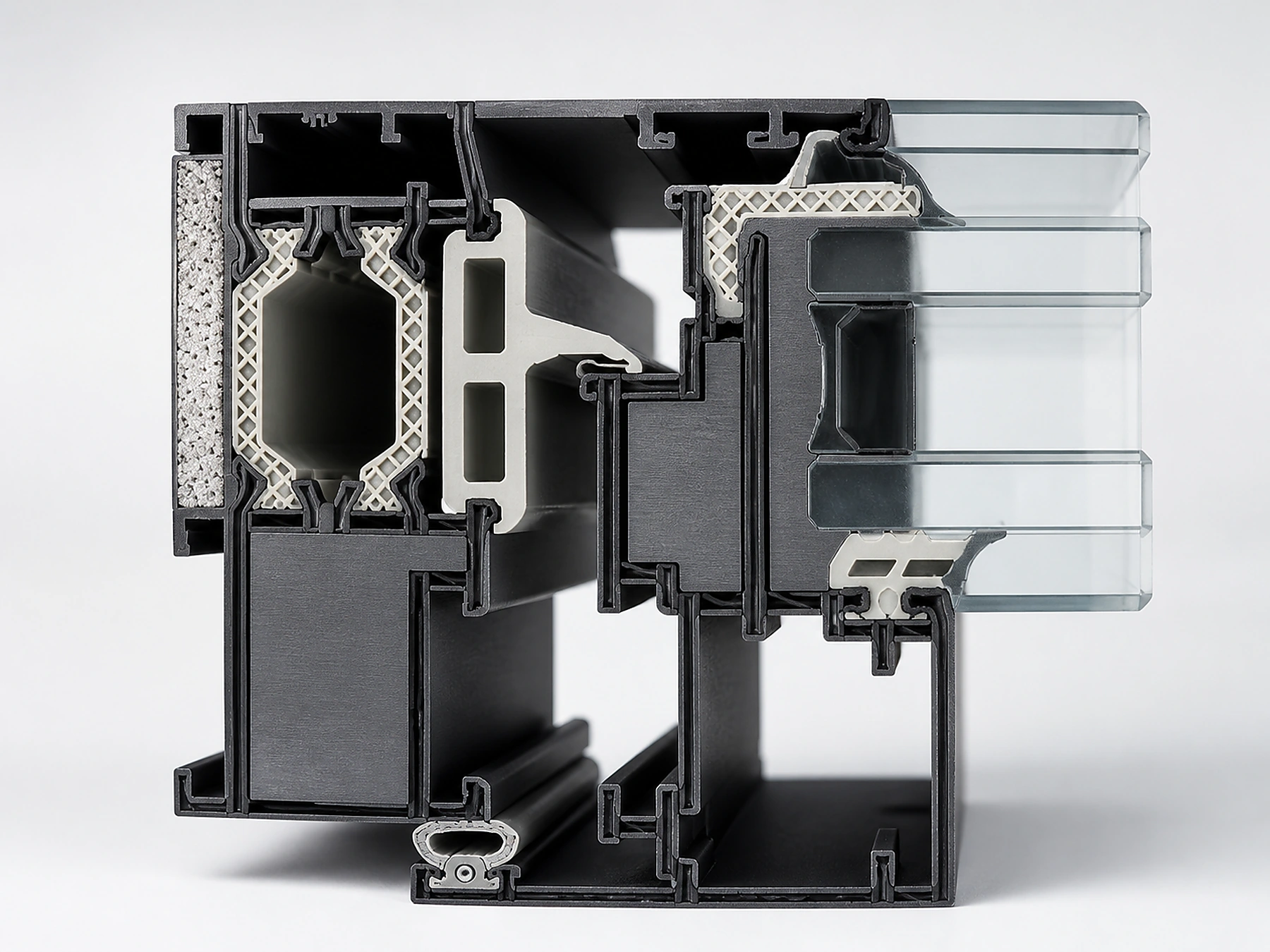

Profile sectionCOR 60 Hidden Hinge
Features

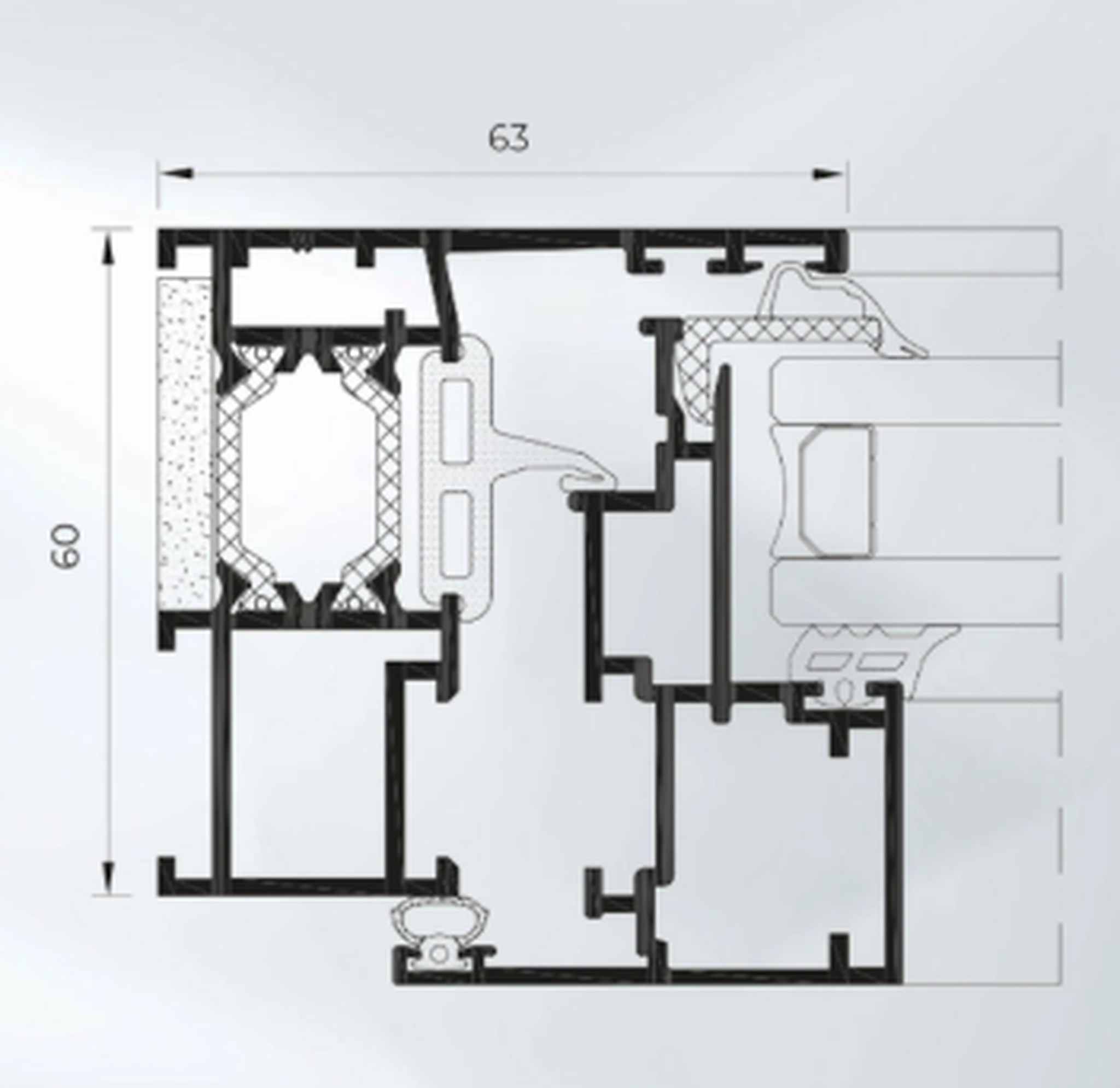

Profile section1 / 4
| Thermal value | Uw 1.0–1.5 W/m²K | |
|---|---|---|
| Acoustic insulation | Rw 45–48 dB | |
| Water tightness | 9A / E1350 | |
| Wind resistance | C5 | |
| Air permeability | Class 4 |
Values depend on dimensions, glazing and configuration. The final specification requires technical validation before quotation.
Profile dimensions+
| Frame / sash depth | 60 mm | |
|---|---|---|
| Polyamide / thermal break | 24 mm | |
| Profile thickness | 1.6 mm |
Glazing and sealing+
| Glazing thickness | 5–46 mm |
|---|
Construction limits+
| Maximum sash size | 1500 × 2600 mm | |
|---|---|---|
| Maximum sash weight | 160 kg |
- Thermal break where specified
- Powder coating, anodising and bicolour options
- Typologies and limits depend on configuration
- Technical validation before quotation
Finishes
Find your finish.
Painted / RAL
Traffic White
RAL 901601 / 10
Indicative palette, not live stock. Confirm the code, texture and compatibility with a physical sample for the selected system.
Complete palettes
Review the colour documents.
On-screen colour is indicative. Confirm the final choice with a physical sample and the technical configuration.
