CORTIZO · Semi-visible window
COR 70 OC Semi Visible
A balance of sightline and performance.
A semi-visible COR 70 variant documented for thermal, acoustic and strong weather performance.

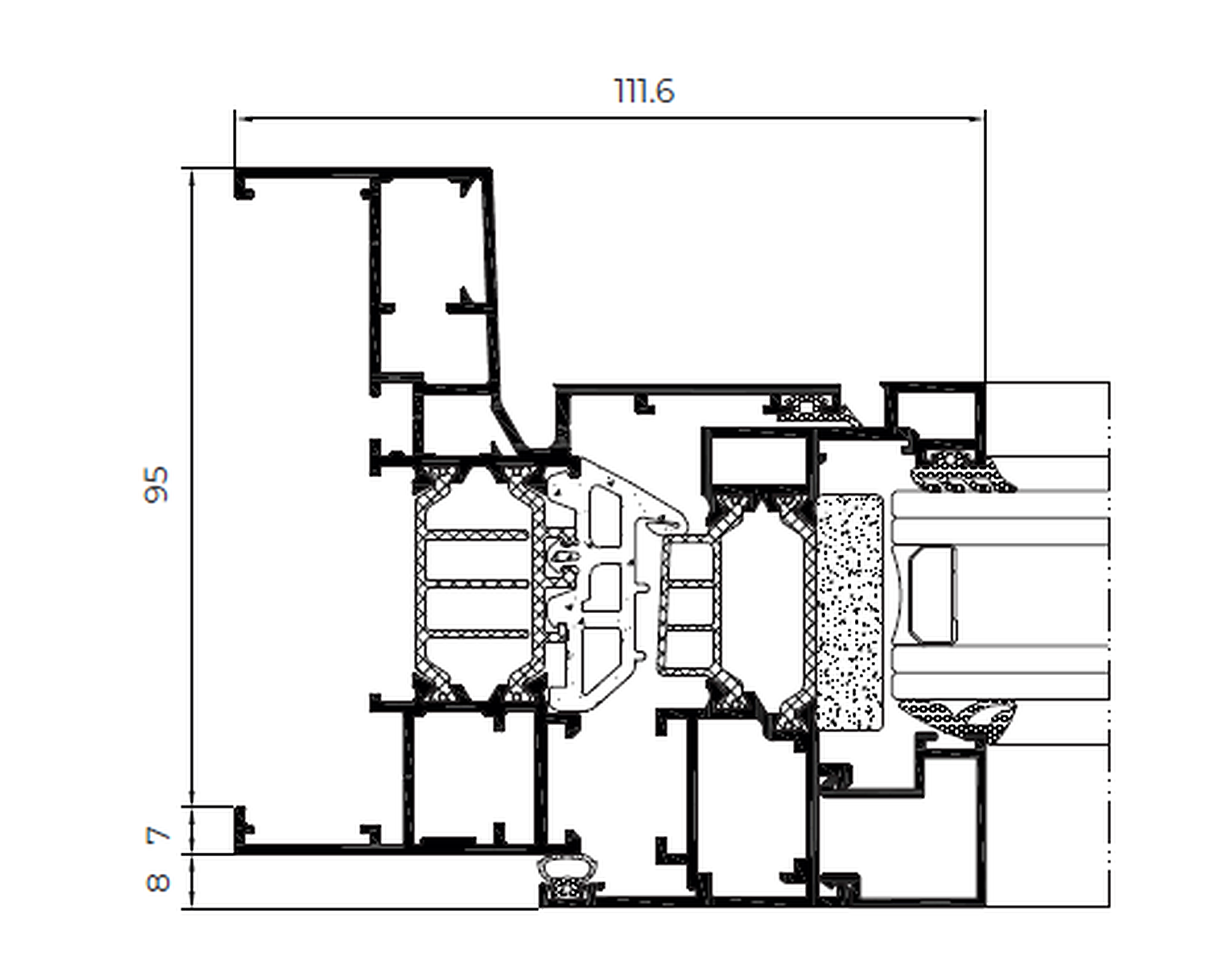

Profile sectionCOR 70 OC Semi Visible
Features
Profile section1 / 3
| Thermal value | Uw ≥ 0.9 W/m²K | |
|---|---|---|
| Acoustic insulation | Rw 44 dB | |
| Air permeability | Class 4 | |
| Wind resistance | C5 | |
| Water tightness | E1800 |
Values depend on dimensions, glazing and configuration. The final specification requires technical validation before quotation.
Profile dimensions+
| Frame depth | 70 mm | |
|---|---|---|
| Sash depth | 78 mm | |
| Polyamide / thermal break | 32–35 mm | |
| Profile thickness | 1.5 mm |
Glazing and sealing+
| Glazing thickness | 15–55 mm |
|---|
Construction limits+
| Maximum sash size | 1000 × 1700 mm | |
|---|---|---|
| Maximum sash weight | 160 kg |
- Thermal break where specified
- Powder coating, anodising and bicolour options
- Typologies and limits depend on configuration
- Technical validation before quotation
Finishes
Find your finish.
Painted / RAL
Traffic White
RAL 901601 / 10
Indicative palette, not live stock. Confirm the code, texture and compatibility with a physical sample for the selected system.
Complete palettes
Review the colour documents.
On-screen colour is indicative. Confirm the final choice with a physical sample and the technical configuration.
