VEKA · Class A PVC system

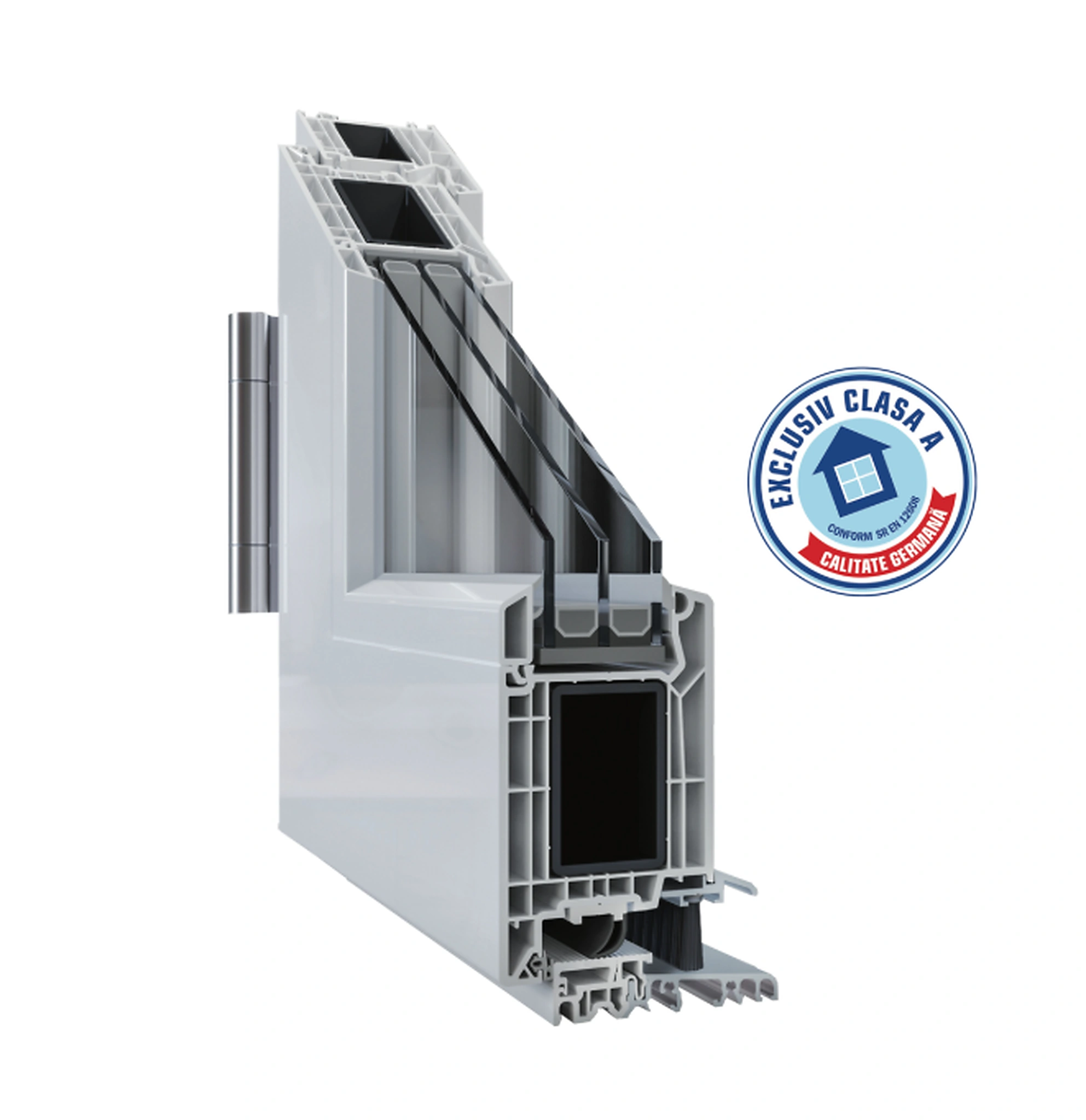

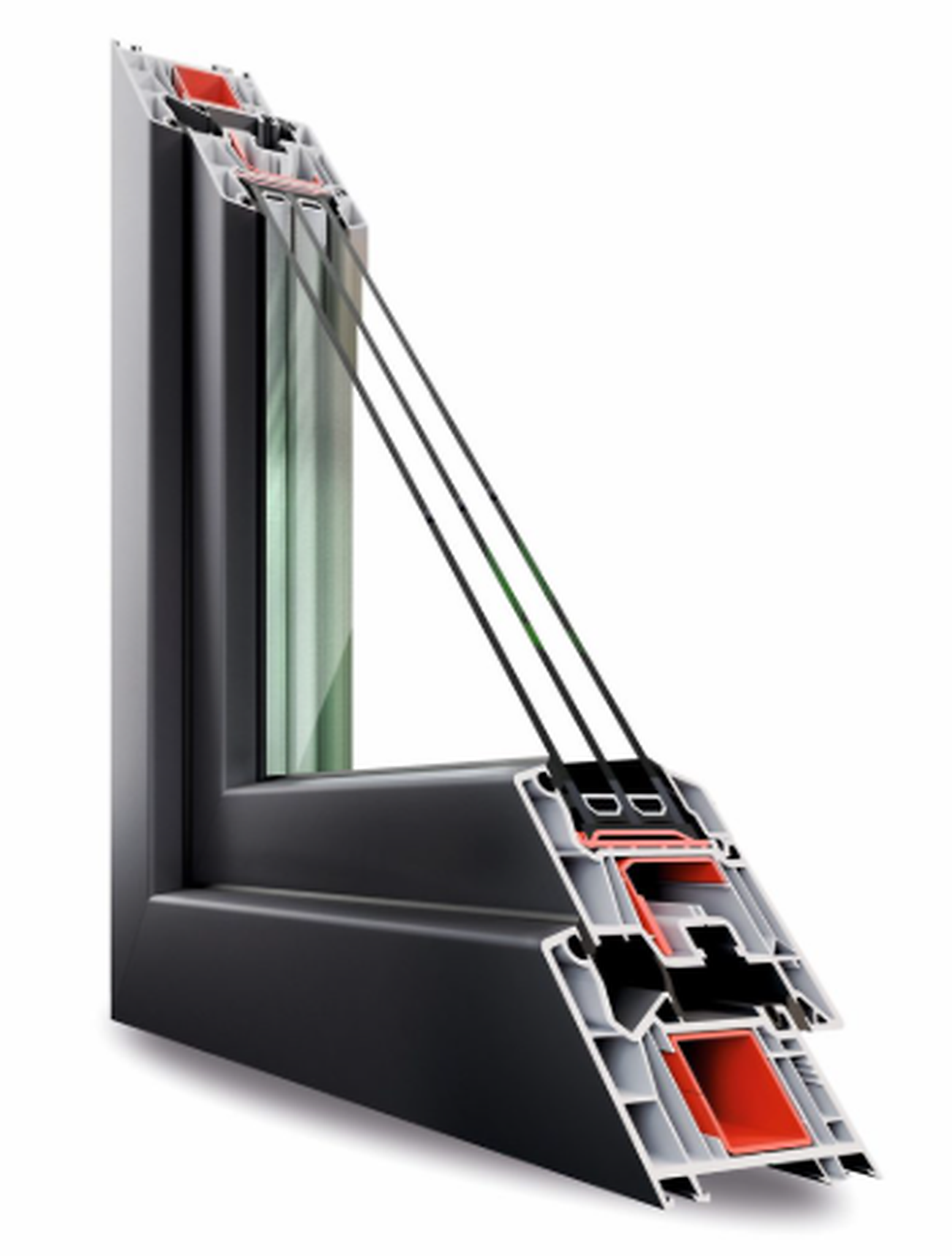

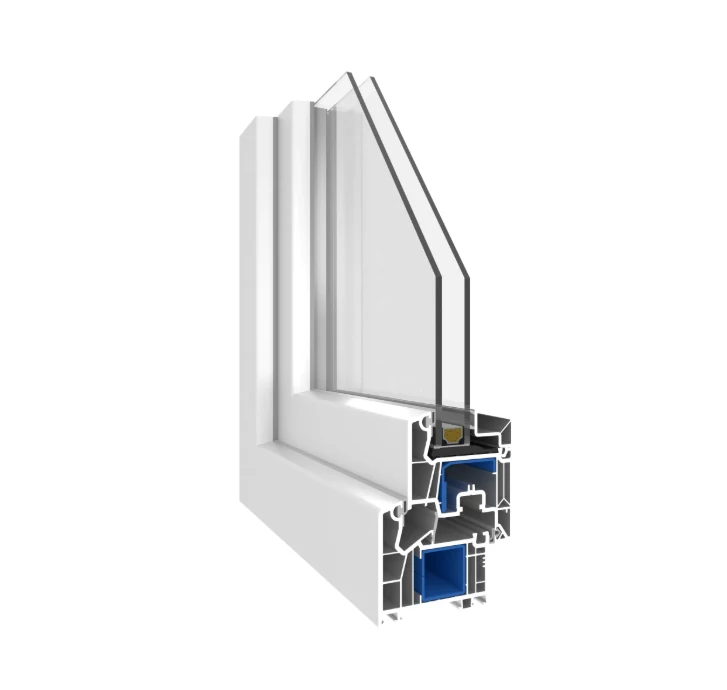

Softline 76 MD
Rigidity for new build and renovation.

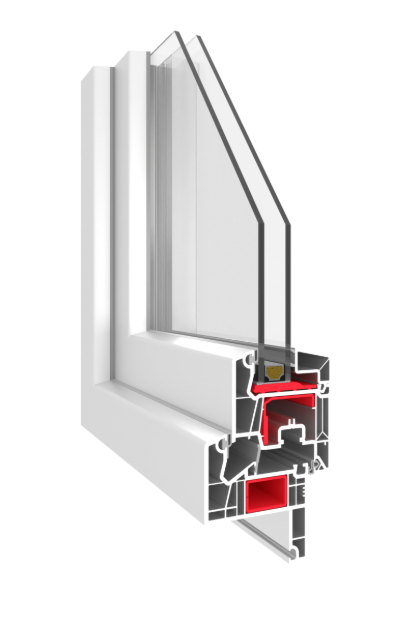

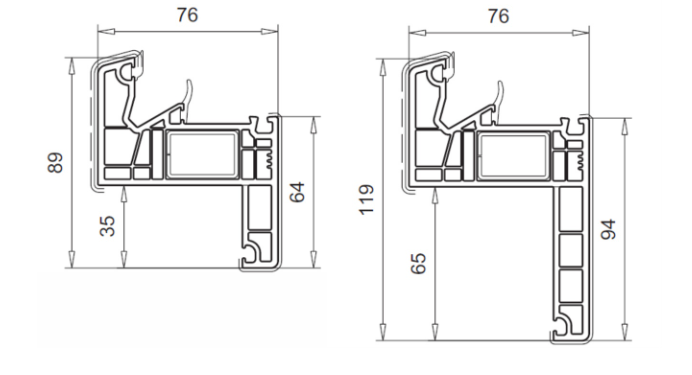

A 76 mm Class A system with centre seal and glazing up to 48 mm, including dedicated renovation frames.

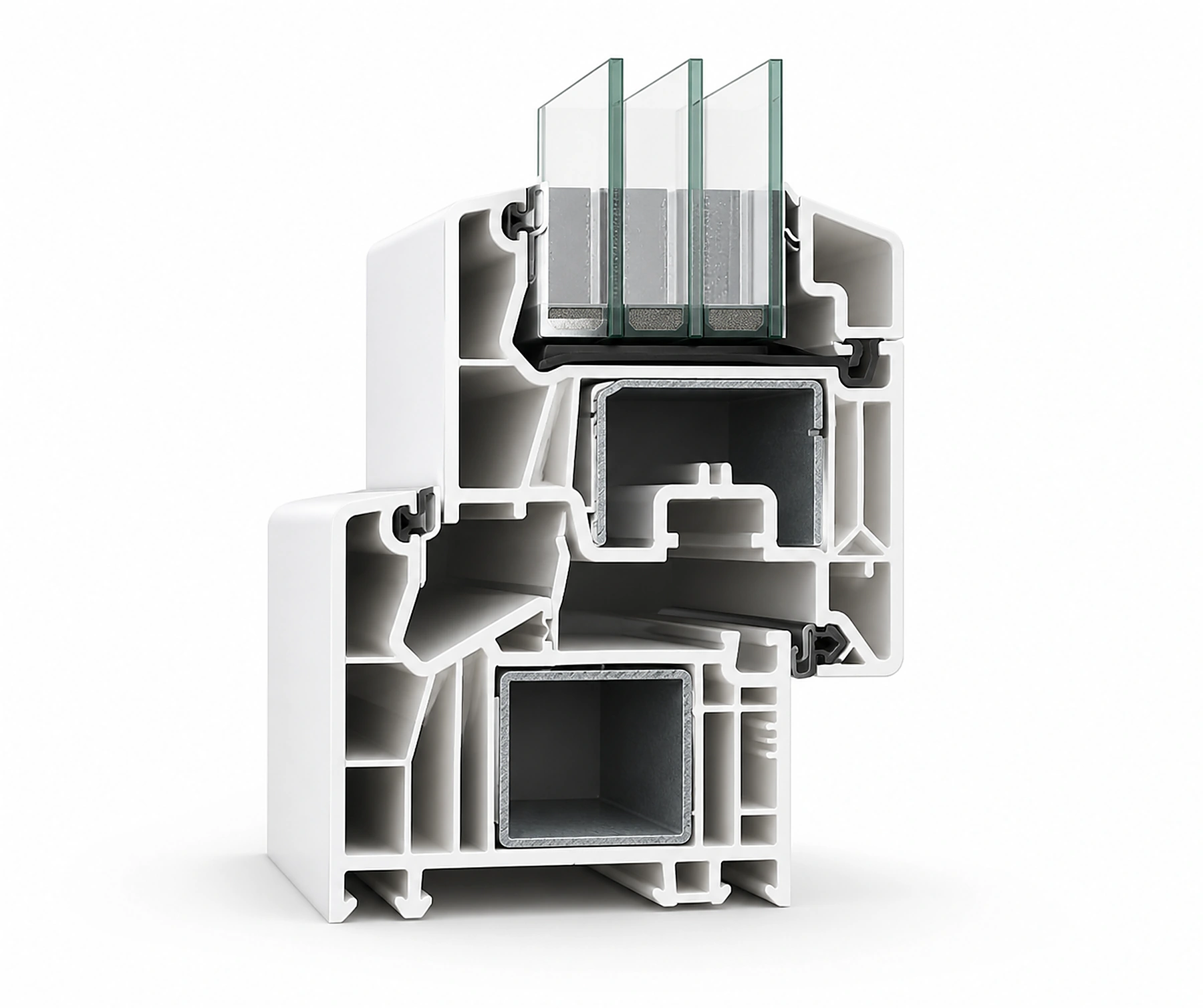

Profile sectionSoftline 76 MD
Features
| Depth | 76 mm | |
|---|---|---|
| Thermal value | Uw 0.75 W/m²K | |
| Acoustic insulation | Rw 47 dB | |
| Glazing | 48 mm | |
| Burglary resistance | RC2 |
Values depend on dimensions, glazing and configuration. The final specification requires technical validation before quotation.

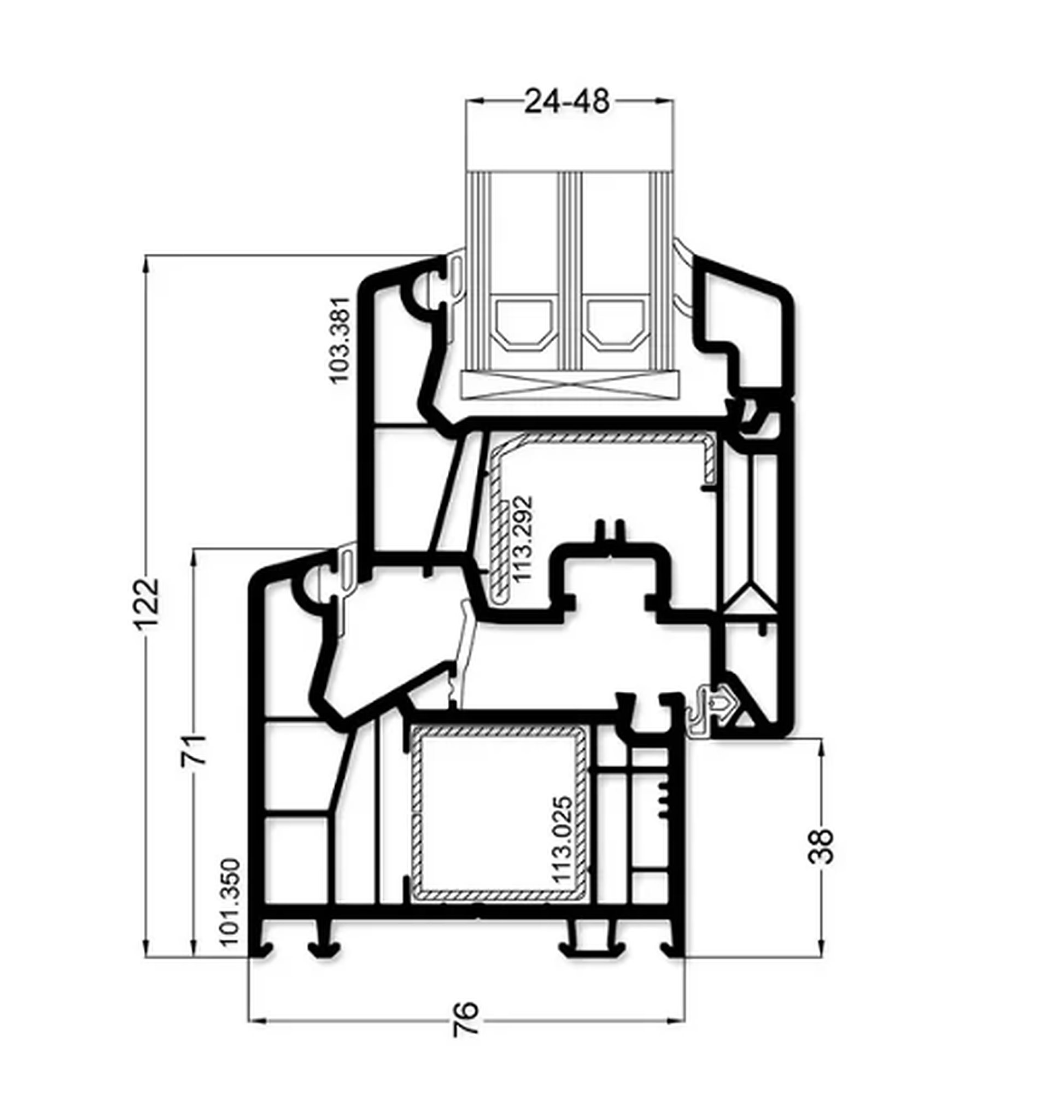

Profile dimensions+
| Frame / sash depth | 76 mm | |
|---|---|---|
| Profile combination | 112–173 mm | |
| Rebate height | 28 mm | |
| Insulation chambers | 5 / 6 | |
| Profile thickness | reinforcement 1.5–2 mm |
Glazing and sealing+
| Glazing thickness | up to 48 mm | |
|---|---|---|
| Sealing levels | 3 |
- Made to project dimensions
- Double or triple glazing, by system
- Coordinated colours and finishes
- Final configuration is technically validated
Finishes
Find your finish.
MAR&PET Standard · 14
Core white
Indicative palette, not live stock. Confirm the code, texture and compatibility with a physical sample for the selected system.
Complete palettes
Review the colour documents.
Standard, Extended Standard, SPECTRAL and special foils. Compatibility is checked per system.
Open PDF ↗
Colour reference for painted options, available on request across all eligible profiles.
Open PDF ↗On-screen colour is indicative. Confirm the final choice with a physical sample and the technical configuration.
Continuity starts at the corner.
V-PERFECT is designed for a continuous PVC joint appearance, without the visible outer bead of conventional welding. Explore the detail in smooth and wood-effect finishes.
