CORTIZO · Flush panel door
Millennium Panelled Door
The profile disappears. The entrance remains.
A flush panel solution based on Millennium Plus 70 or 80, for a flat exterior face and sizes up to 1,800 × 3,000 mm.

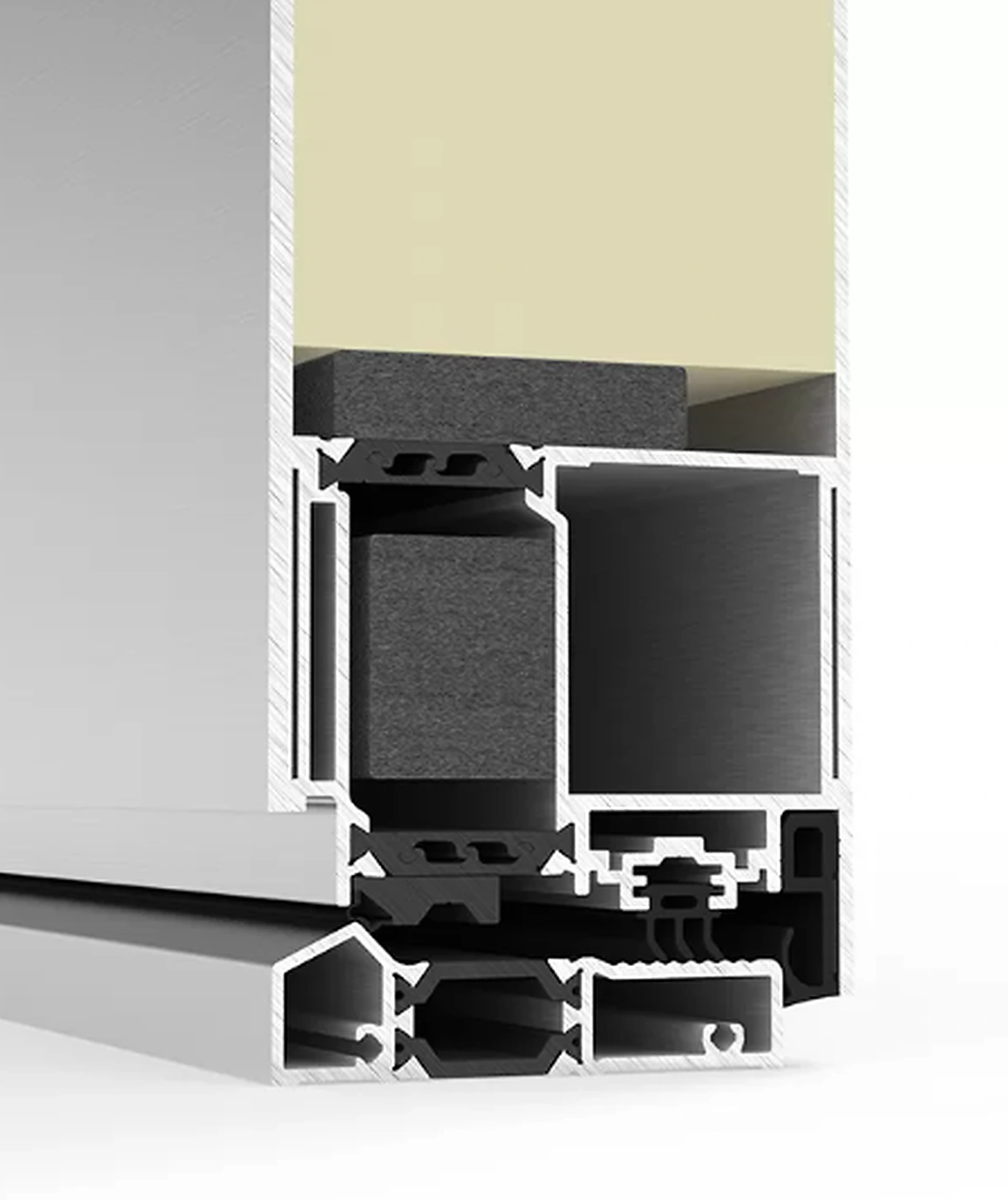

Profile sectionMillennium Panelled Door
Features
Thermal value depends on the Millennium 70/80 base and requires confirmation

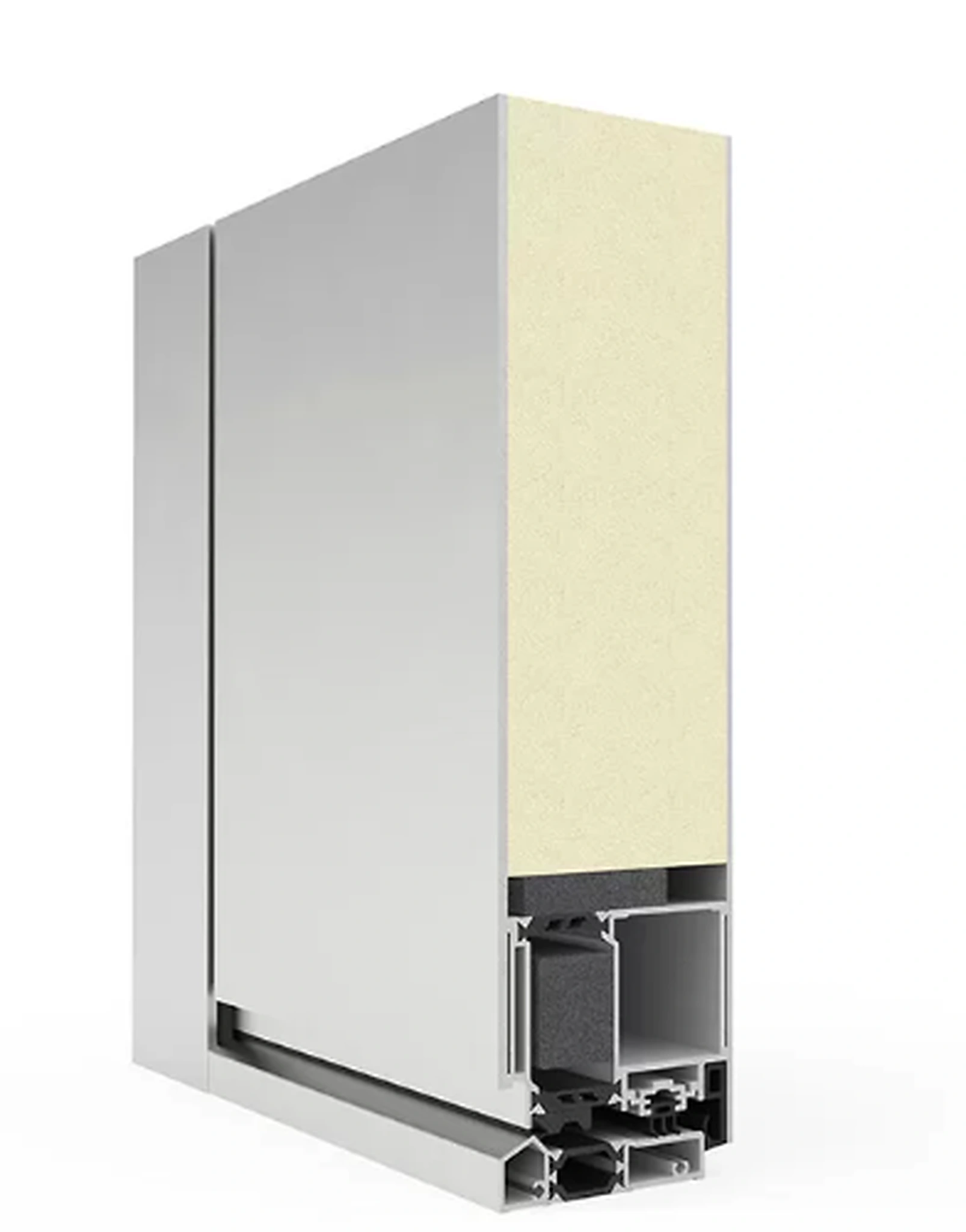

Profile section1 / 3
| Depth | 70 / 80 mm | |
|---|---|---|
| Acoustic insulation | Rw 38–40 dB | |
| Sash weight | 220 kg |
Values depend on dimensions, glazing and configuration. The final specification requires technical validation before quotation.
Profile dimensions+
| Frame / sash depth | 70 / 80 mm | |
|---|---|---|
| Profile combination | 119 × 70 mm | |
| Polyamide / thermal break | 20 / 24 mm (70) · 30 / 34 mm (80) | |
| Profile thickness | 2.0 mm |
Glazing and sealing+
| Panel thickness | 23–70 mm (70) · 33–80 mm (80) |
|---|
Construction limits+
| Maximum sash size | door 1800 × 3000 mm · concealed hinges 1500 × 2700 mm | |
|---|---|---|
| Maximum sash weight | 220 kg · concealed hinges 120 kg |
- Thermal break where specified
- Powder coating, anodising and bicolour options
- Typologies and limits depend on configuration
- Technical validation before quotation
Finishes
Find your finish.
Painted / RAL
Traffic White
RAL 901601 / 10
Indicative palette, not live stock. Confirm the code, texture and compatibility with a physical sample for the selected system.
Complete palettes
Review the colour documents.
On-screen colour is indicative. Confirm the final choice with a physical sample and the technical configuration.
