CORTIZO · Minimal sliding system
COR Vision
A centre mullion of only 20 mm.

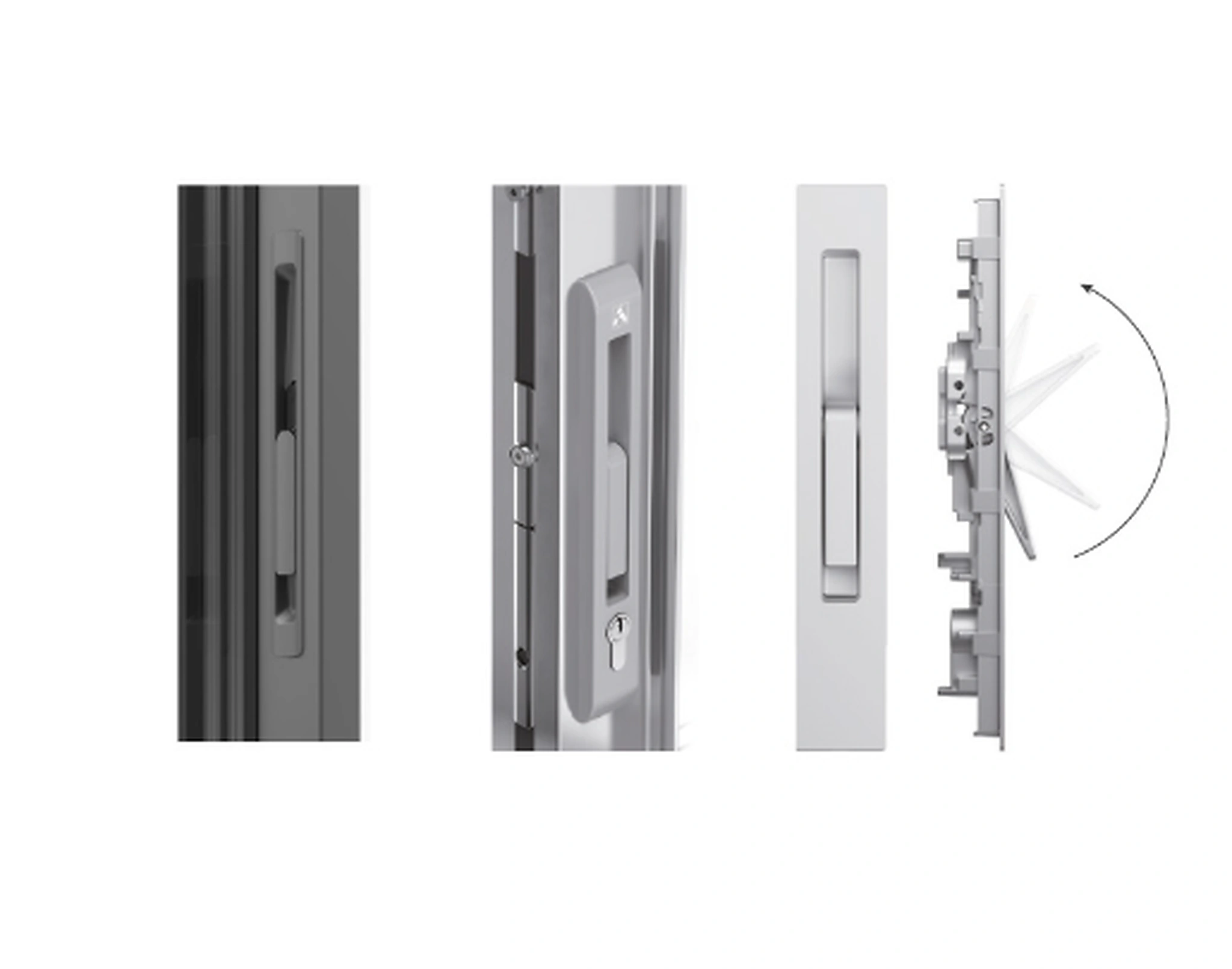

A thermally broken sliding system with optional concealed perimeter frame and integrated central-mullion locking.

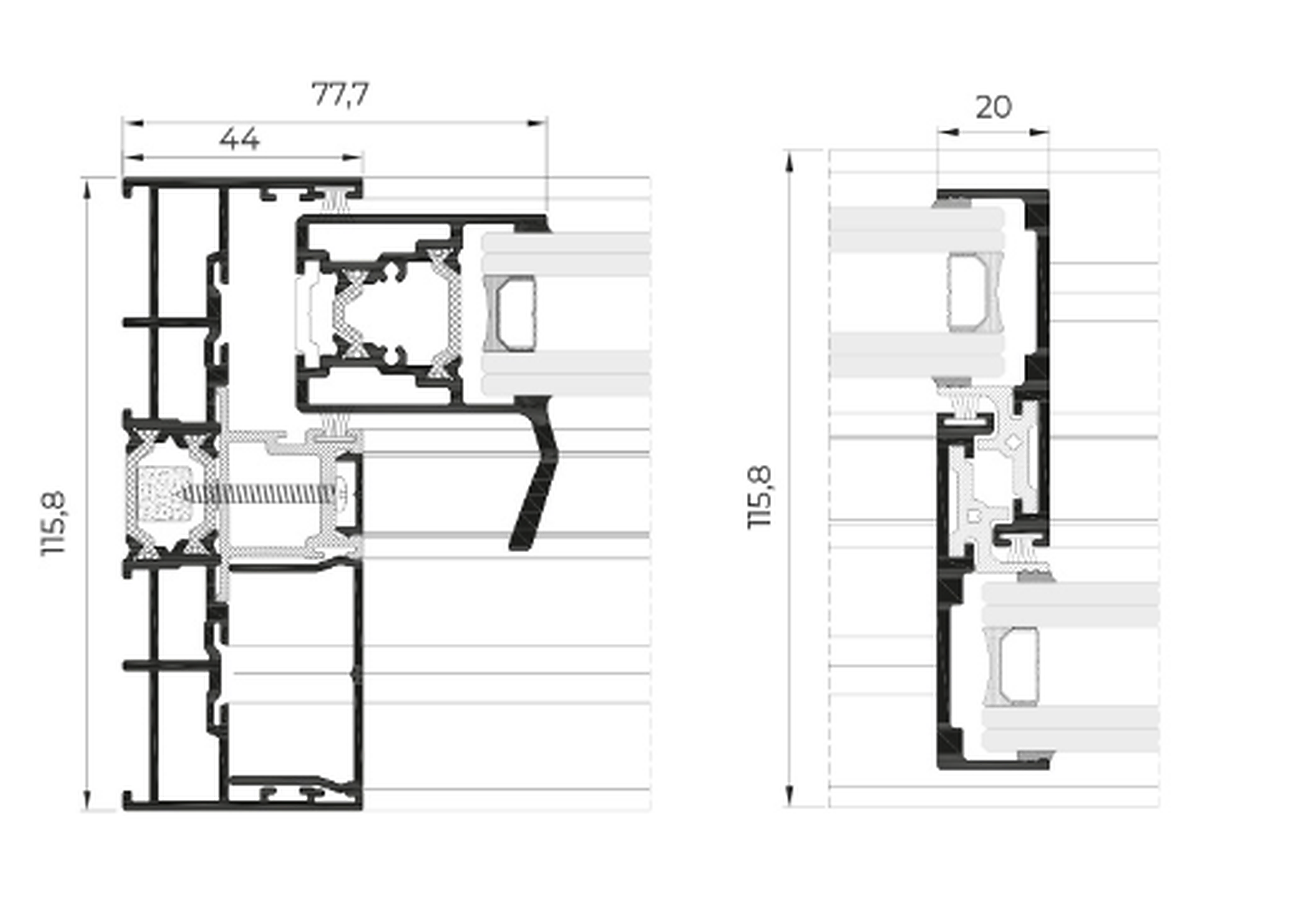

Profile sectionCOR Vision
Features
Profile section1 / 4
| Thermal value | Uw ≥ 1.3 W/m²K | |
|---|---|---|
| Acoustic insulation | Rw 41 dB | |
| Water tightness | 7A | |
| Wind resistance | C5 | |
| Air permeability | Class 4 |
Values depend on dimensions, glazing and configuration. The final specification requires technical validation before quotation.
Profile dimensions+
| Frame sections | 116 / 182 mm (3 tracks) | |
|---|---|---|
| Sash section | 37 mm | |
| Visible frame / sash width | 20 mm | |
| Polyamide / thermal break | 16 / 24 mm |
Glazing and sealing+
| Glazing thickness | 26–30 mm |
|---|
Construction limits+
| Maximum sash size | 2500 × 3000 mm | |
|---|---|---|
| Maximum sash weight | 320 kg |
- Thermal break where specified
- Powder coating, anodising and bicolour options
- Typologies and limits depend on configuration
- Technical validation before quotation
Finishes
Find your finish.
Painted / RAL
Traffic White
RAL 901601 / 10
Indicative palette, not live stock. Confirm the code, texture and compatibility with a physical sample for the selected system.
Complete palettes
Review the colour documents.
On-screen colour is indicative. Confirm the final choice with a physical sample and the technical configuration.
