CORTIZO · HI lift-and-slide
4600 Lift & Slide HI
Ultra-smooth travel on a stainless-steel rail.
A robust large-opening system with two central-mullion options: 110 mm standard or 50 mm minimal.

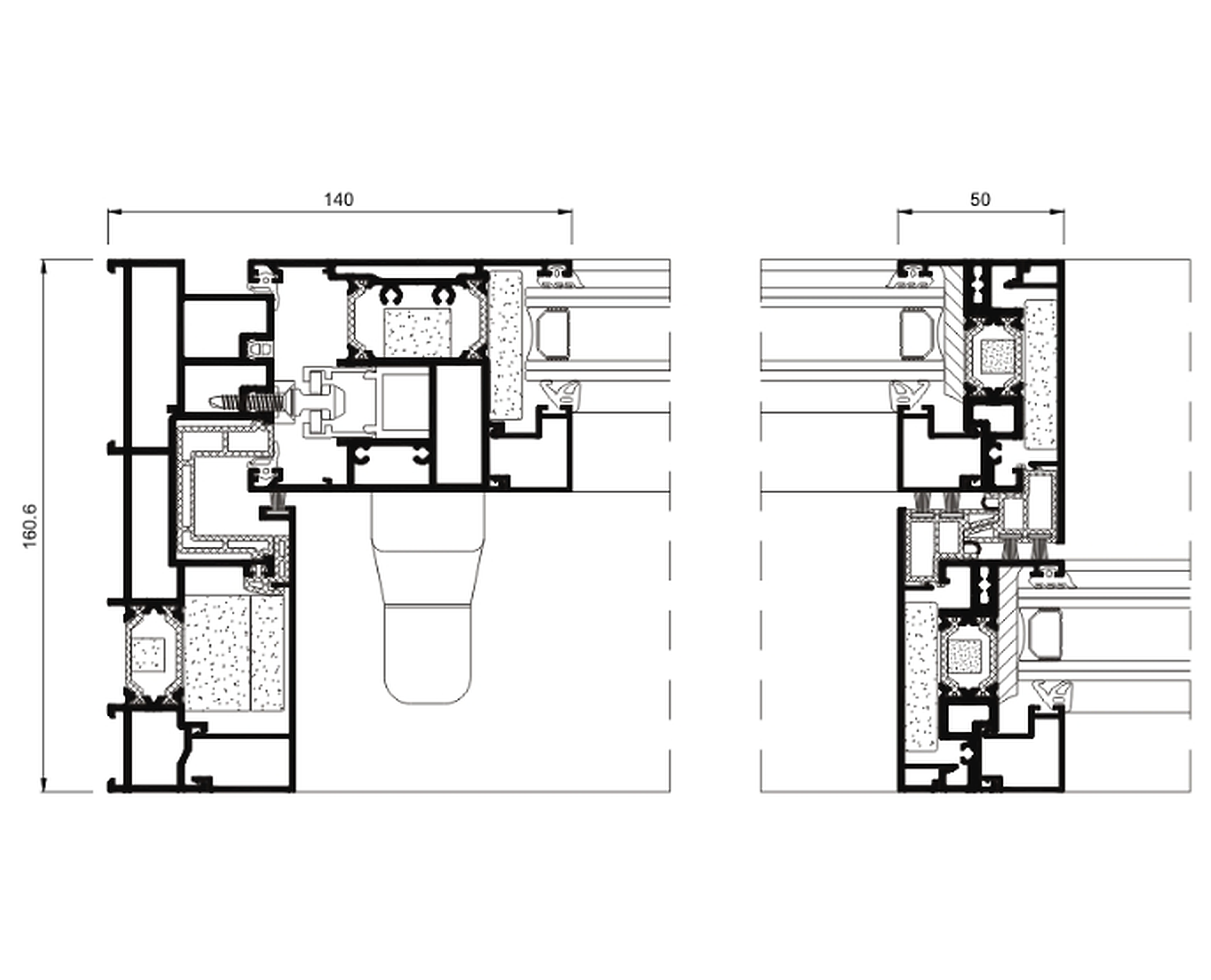

Profile section4600 Lift & Slide HI
Features
Profile section1 / 4
| Thermal value | Uw from 0.9 | |
|---|---|---|
| Acoustic insulation | Rw 43 dB | |
| Water tightness | 9A | |
| Wind resistance | C5 | |
| Air permeability | Class 4 |
Values depend on dimensions, glazing and configuration. The final specification requires technical validation before quotation.
Profile dimensions+
| Frame sections | 160.6 mm · 251 mm (3 tracks) | |
|---|---|---|
| Sash section | 70 mm | |
| Polyamide / thermal break | 35 / 24 mm | |
| Profile thickness | 2 mm |
Glazing and sealing+
| Glazing thickness | 15–55 mm |
|---|
Construction limits+
| Maximum sash size | 3300 × 3300 mm | |
|---|---|---|
| Maximum sash weight | 400 kg |
- Thermal break where specified
- Powder coating, anodising and bicolour options
- Typologies and limits depend on configuration
- Technical validation before quotation
Finishes
Find your finish.
Painted / RAL
Traffic White
RAL 901601 / 10
Indicative palette, not live stock. Confirm the code, texture and compatibility with a physical sample for the selected system.
Complete palettes
Review the colour documents.
On-screen colour is indicative. Confirm the final choice with a physical sample and the technical configuration.
