SALAMANDER · 6-chamber lift-and-slide system
evolutionDrive HST
Generous light. A controlled threshold.
An HST system with a 194 mm frame, 82 mm sash, six chambers, glazing up to 52 mm and declared values down to Uw 0.72 W/m²K.

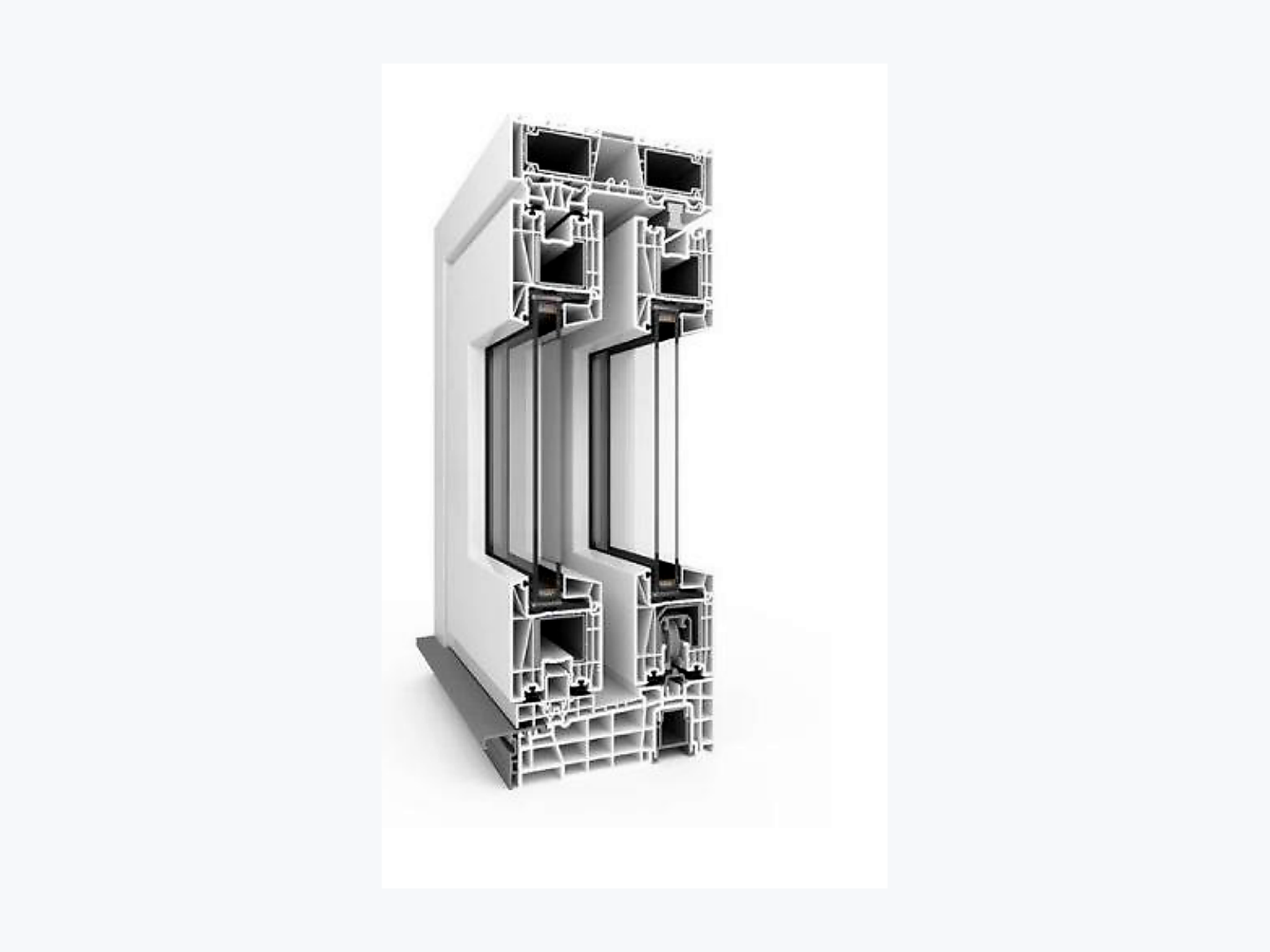

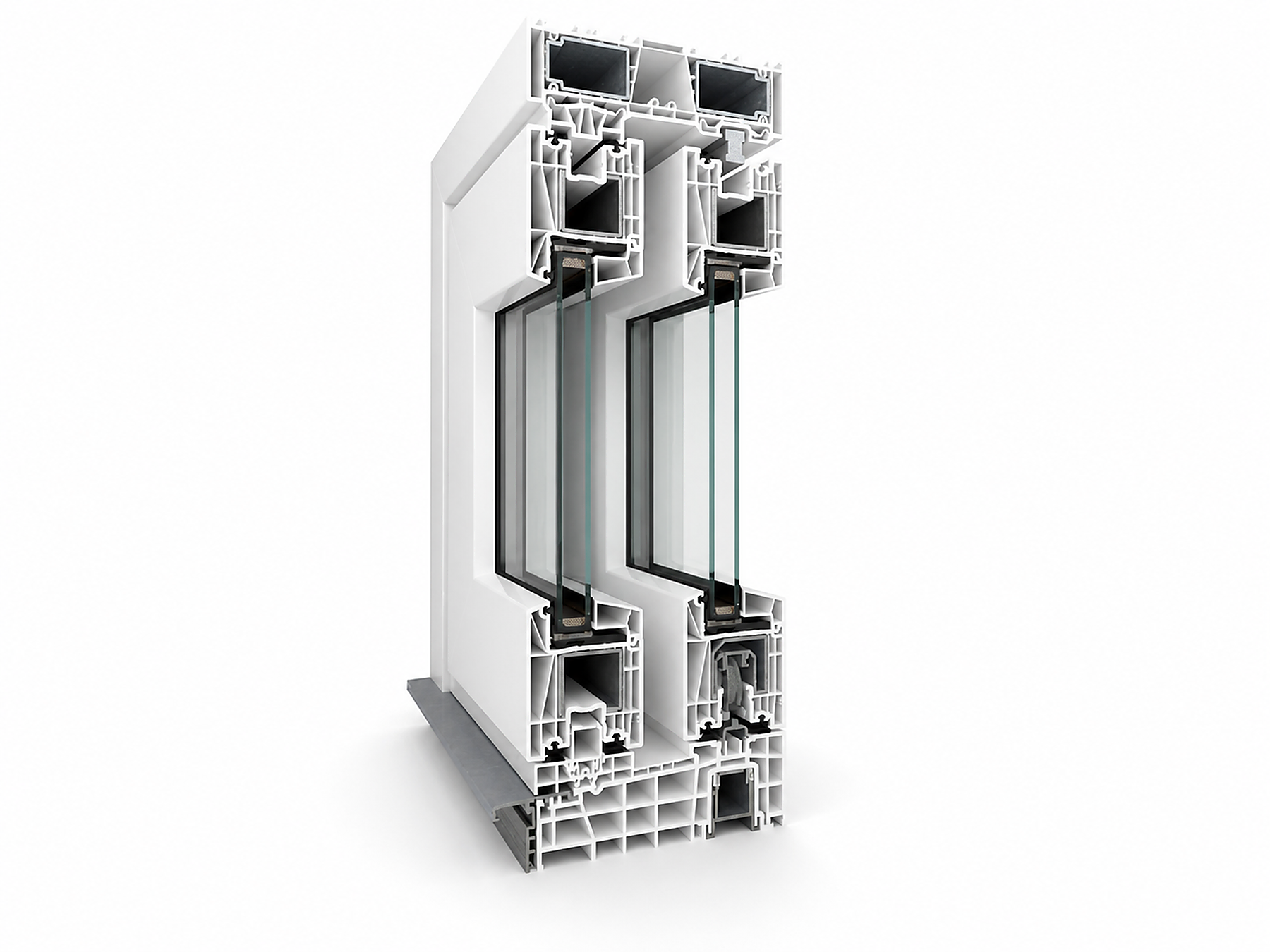

Profile sectionevolutionDrive HST
Features
| Depth | 194 / 82 mm | |
|---|---|---|
| Chambers | 6 | |
| Thermal value | Uw 0.72 W/m²K | |
| Glazing | 52 mm | |
| Thermal transmittance | Uf 1.30 · Uw as low as 0.72 W/m²K | |
| Air permeability | Class 4 | |
| Water tightness | Class 9A | |
| Wind resistance | Class B2 | |
| Burglary resistance | RC2 |
Values depend on dimensions, glazing and configuration. The final specification requires technical validation before quotation.
Profile dimensions+
| Frame depth | 194 mm | |
|---|---|---|
| Sash depth | 82 mm | |
| Insulation chambers | 6 |
Glazing and sealing+
| Glazing thickness | up to 52 mm |
|---|
- Made to project dimensions
- Double or triple glazing, by system
- Coordinated colours and finishes
- Final configuration is technically validated
Finishes
Find your finish.
Salamander · 40 decors
Golden Oak
51Indicative palette, not live stock. Confirm the code, texture and compatibility with a physical sample for the selected system.
Complete palettes
Review the colour documents.
40 standard and made-to-order decors. Samples and current availability are confirmed before production.
Open PDF ↗
Colour reference for painted options, available on request across all eligible profiles.
Open PDF ↗On-screen colour is indicative. Confirm the final choice with a physical sample and the technical configuration.
