CORTIZO · Versatile sliding system
4200 Sliding
Straight, curved or pocket opening.
A multi-configuration sliding system including a pocket solution with sashes concealed in the wall and Tamiz integration.

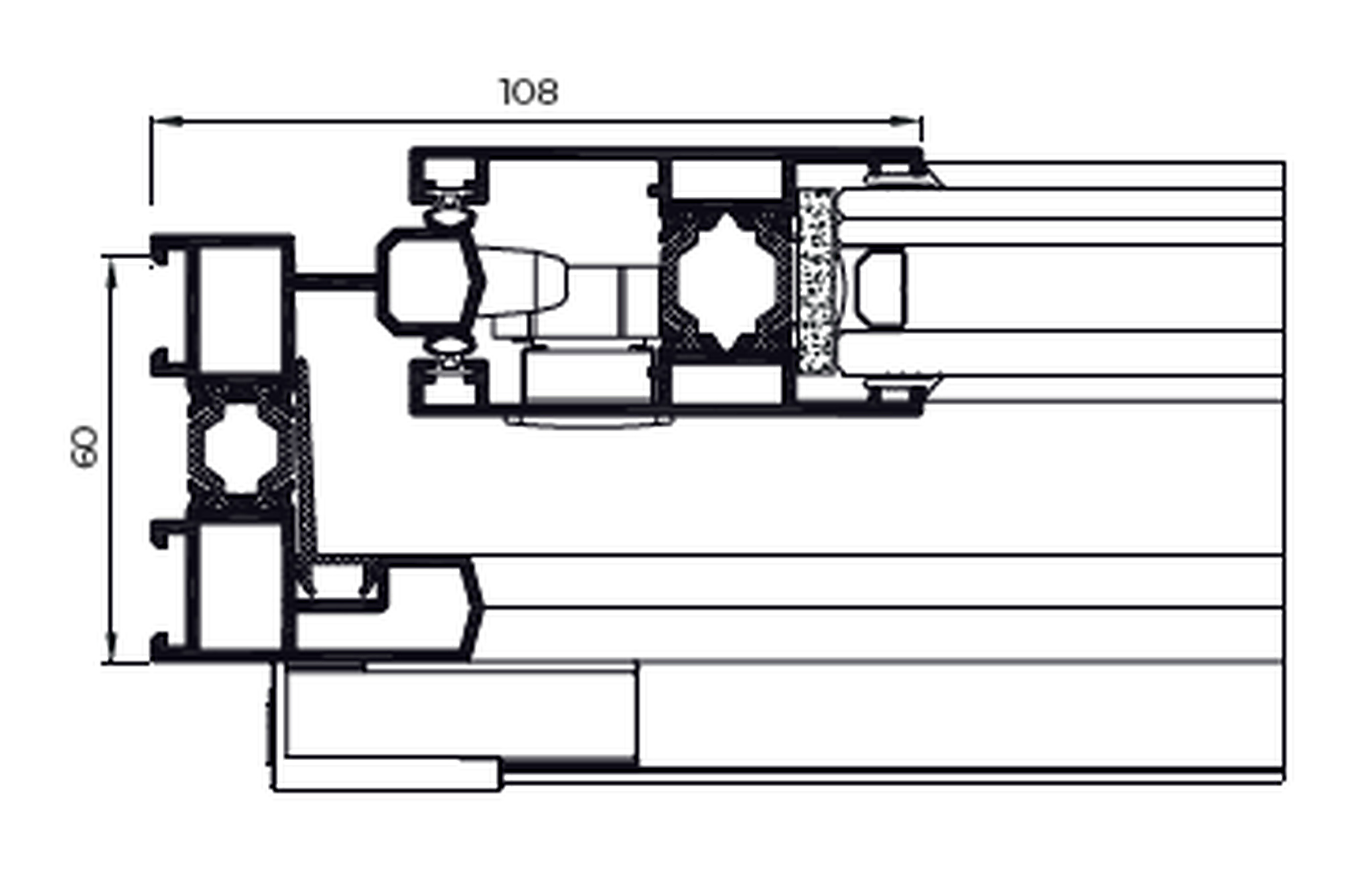

Profile section4200 Sliding
Features
Profile section1 / 3
| Thermal value | Uw ≥ 1.5 W/m²K | |
|---|---|---|
| Acoustic insulation | Rw 39 dB | |
| Air permeability | Class 3 | |
| Wind resistance | C5 | |
| Water tightness | Class 7A |
Values depend on dimensions, glazing and configuration. The final specification requires technical validation before quotation.
Profile dimensions+
| Frame sections | 60 / 65 / 77 / 80 mm · 106 / 126 mm (3 tracks) | |
|---|---|---|
| Sash section | 33 / 37 mm |
Glazing and sealing+
| Glazing thickness | 9–26 mm |
|---|
Construction limits+
| Maximum sash size | 2200 × 2600 mm | |
|---|---|---|
| Maximum sash weight | 100 / 200 kg |
- Thermal break where specified
- Powder coating, anodising and bicolour options
- Typologies and limits depend on configuration
- Technical validation before quotation
Finishes
Find your finish.
Painted / RAL
Traffic White
RAL 901601 / 10
Indicative palette, not live stock. Confirm the code, texture and compatibility with a physical sample for the selected system.
Complete palettes
Review the colour documents.
On-screen colour is indicative. Confirm the final choice with a physical sample and the technical configuration.
