CORTIZO · Perimeter sliding system
2000 Sliding
Single, double or triple-track configurations.
A CORTIZO system with straight, curved or bevelled sash, 3–17 mm glazing and documented sashes up to 1600 × 2600 mm.

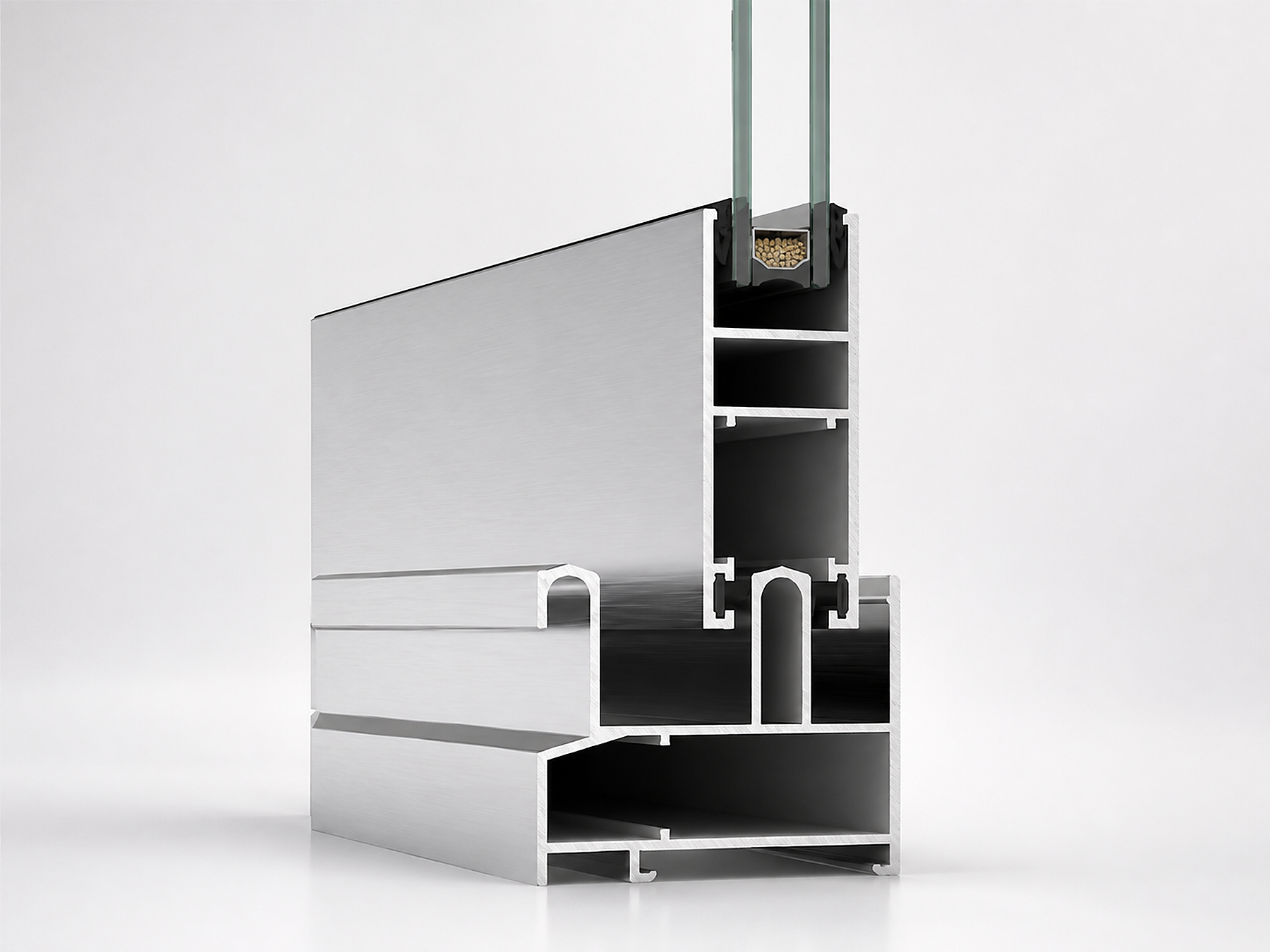

Profile section2000 Sliding
Features
Profile section1 / 1
| Thermal value | Uw ≥ 2.9 W/m²K | |
|---|---|---|
| Acoustic insulation | Rw 33 dB | |
| Glazing | 3–17 mm | |
| Sash weight | 160 kg | |
| Thermal transmittance | Uw ≥ 2.90 W/m²K | |
| Air permeability | Class 3 | |
| Water tightness | Class 8A | |
| Wind resistance | Class C5 |
Values depend on dimensions, glazing and configuration. The final specification requires technical validation before quotation.
Profile dimensions+
| Frame sections | 40 mm (1 track) · 40 / 45 / 60 / 70 mm (2 tracks) · 80 mm (3 tracks) | |
|---|---|---|
| Sash section | 26 mm straight / 27.5 mm curved | |
| Profile thickness | 1.5 mm |
Glazing and sealing+
| Glazing thickness | 3–17 mm |
|---|
Construction limits+
| Maximum sash size | 1600 × 2600 mm | |
|---|---|---|
| Maximum sash weight | 160 kg |
- Thermal break where specified
- Powder coating, anodising and bicolour options
- Typologies and limits depend on configuration
- Technical validation before quotation
Finishes
Find your finish.
Painted / RAL
Traffic White
RAL 901601 / 10
Indicative palette, not live stock. Confirm the code, texture and compatibility with a physical sample for the selected system.
Complete palettes
Review the colour documents.
On-screen colour is indicative. Confirm the final choice with a physical sample and the technical configuration.
