CORTIZO · Minimal XL sliding system
COR Vision Plus
94% glass. Almost no limits.
A minimal system for large openings with glazing up to 54 mm, sashes up to 4 × 4 m and manual or automated operation.

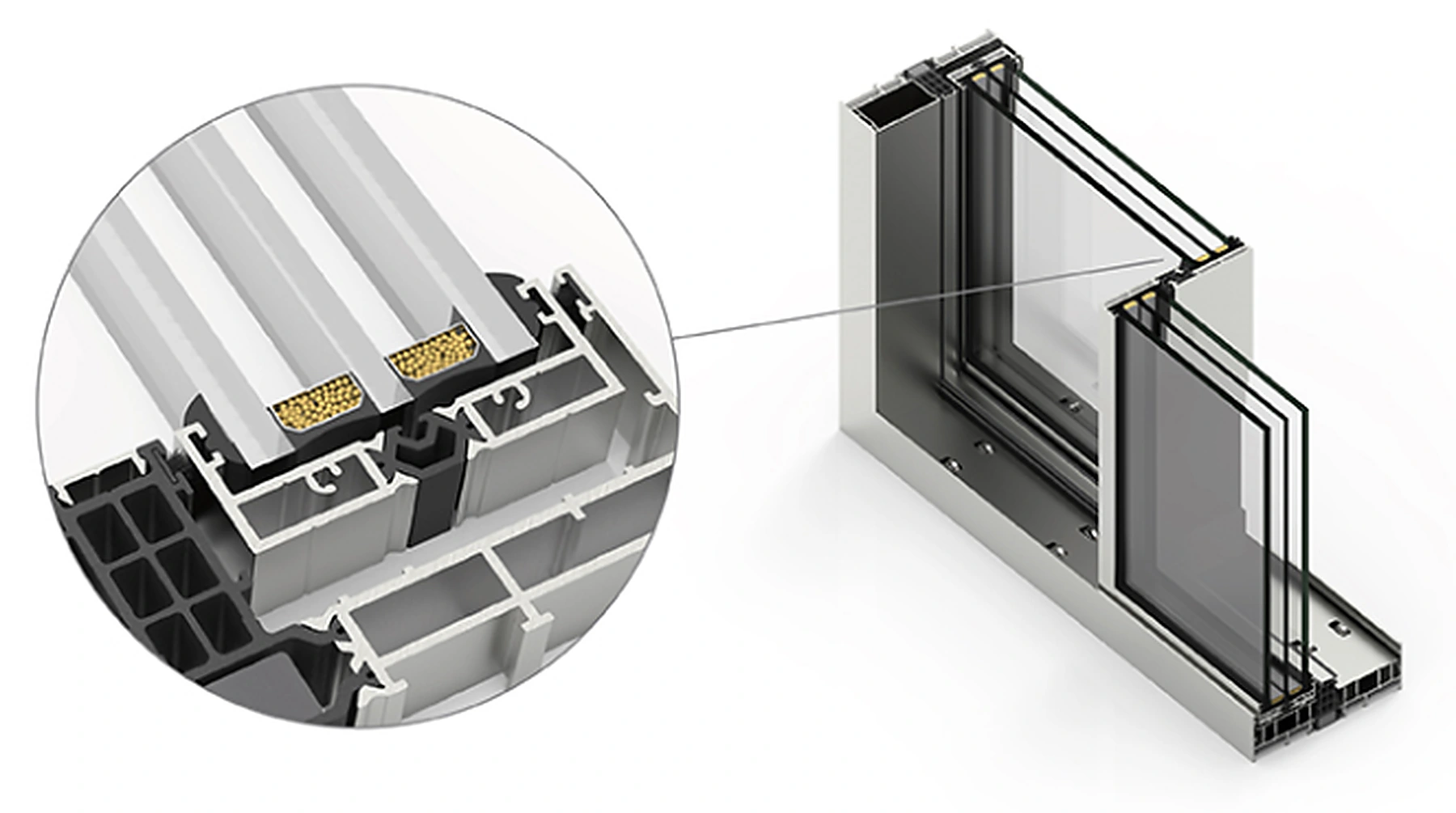

Profile sectionCOR Vision Plus
Features

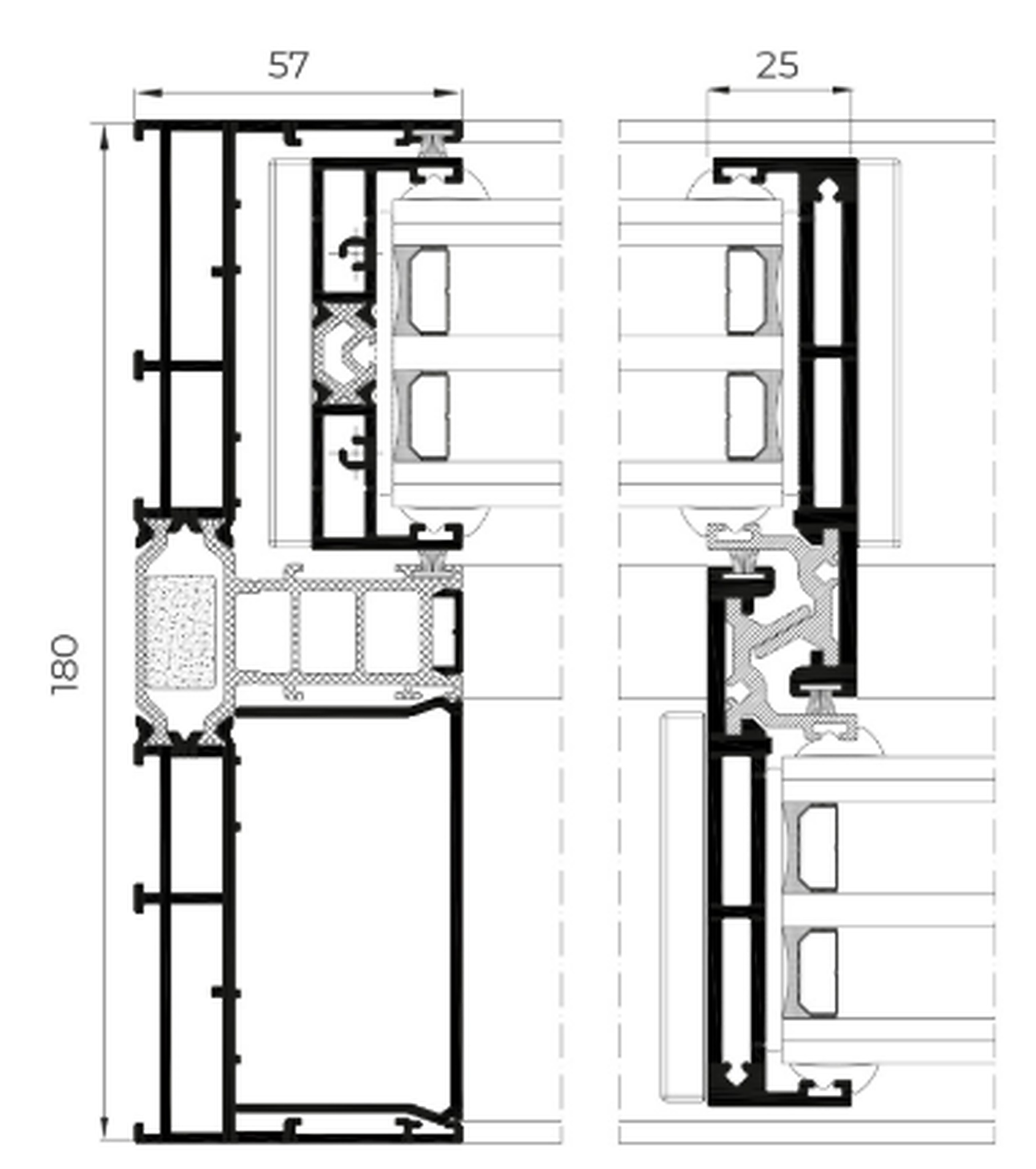

Profile section1 / 5
| Glazed surface | 94% | |
|---|---|---|
| Glazing | 54 mm | |
| Sash weight | 400 / 700 kg | |
| Sash size | 4 × 4 m | |
| Thermal transmittance | Uw 0.90 W/m²K | |
| Acoustic insulation | Rw 43 dB | |
| Air permeability | Class 4 | |
| Water tightness | 7A–9A | |
| Wind resistance | C3–C4 |
Values depend on dimensions, glazing and configuration. The final specification requires technical validation before quotation.

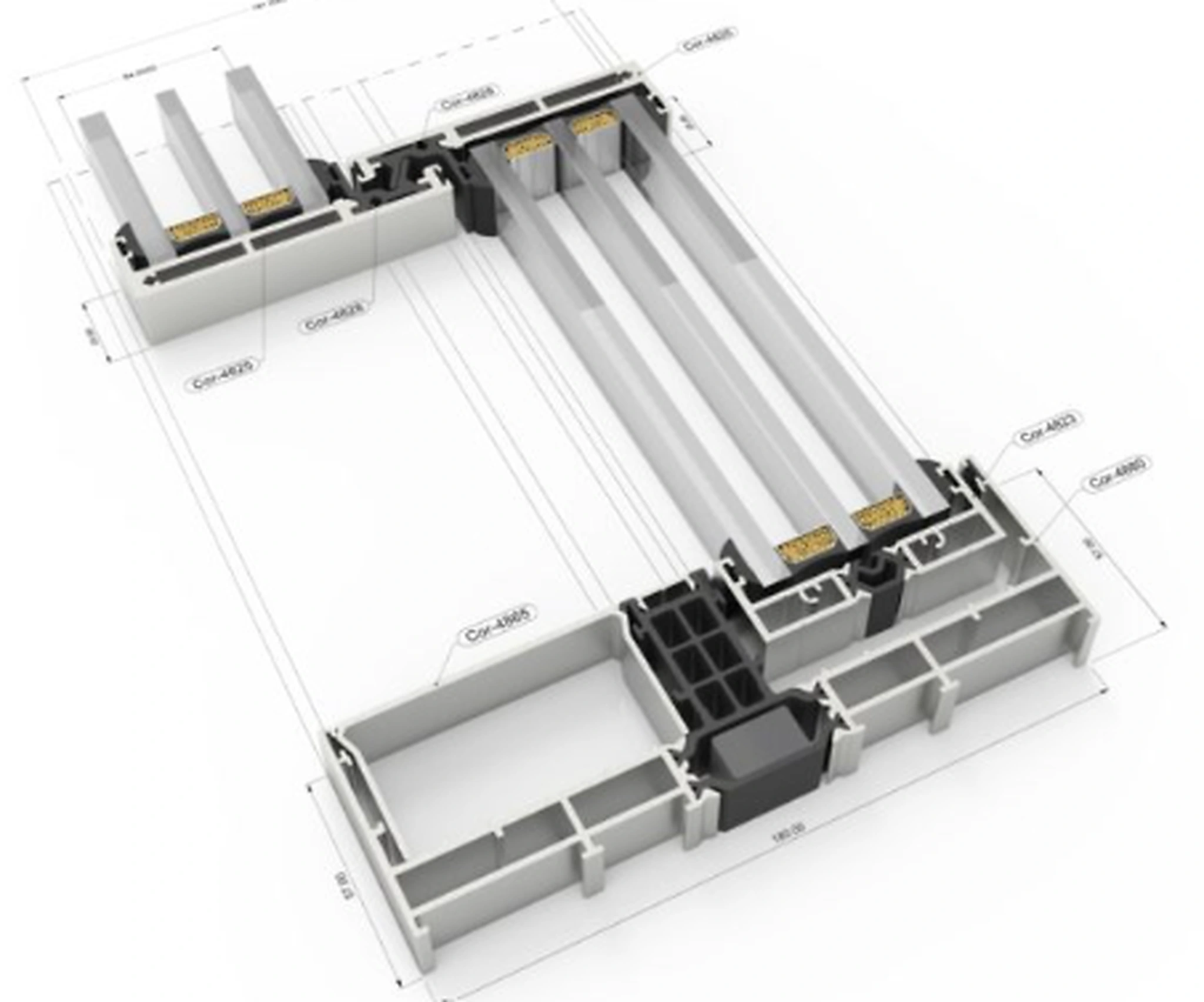

Profile dimensions+
| Frame sections | 180 / 278 mm | |
|---|---|---|
| Sash section | 69 mm | |
| Visible frame / sash width | 25 mm | |
| Polyamide / thermal break | 18 / 32 mm | |
| Profile thickness | 2 mm |
Glazing and sealing+
| Glazing thickness | 36–56 mm |
|---|
Construction limits+
| Maximum sash size | up to 4000 × 4000 mm | |
|---|---|---|
| Maximum sash weight | 400 / 700 kg |
- Thermal break where specified
- Powder coating, anodising and bicolour options
- Typologies and limits depend on configuration
- Technical validation before quotation
Finishes
Find your finish.
Painted / RAL
Traffic White
RAL 901601 / 10
Indicative palette, not live stock. Confirm the code, texture and compatibility with a physical sample for the selected system.
Complete palettes
Review the colour documents.
On-screen colour is indicative. Confirm the final choice with a physical sample and the technical configuration.
