CORTIZO · Sliding / lift-and-slide
4700 Sliding
Large glazed surfaces, straight lines.
A large-opening system available inline or lift-and-slide, with a reduced centre mullion.

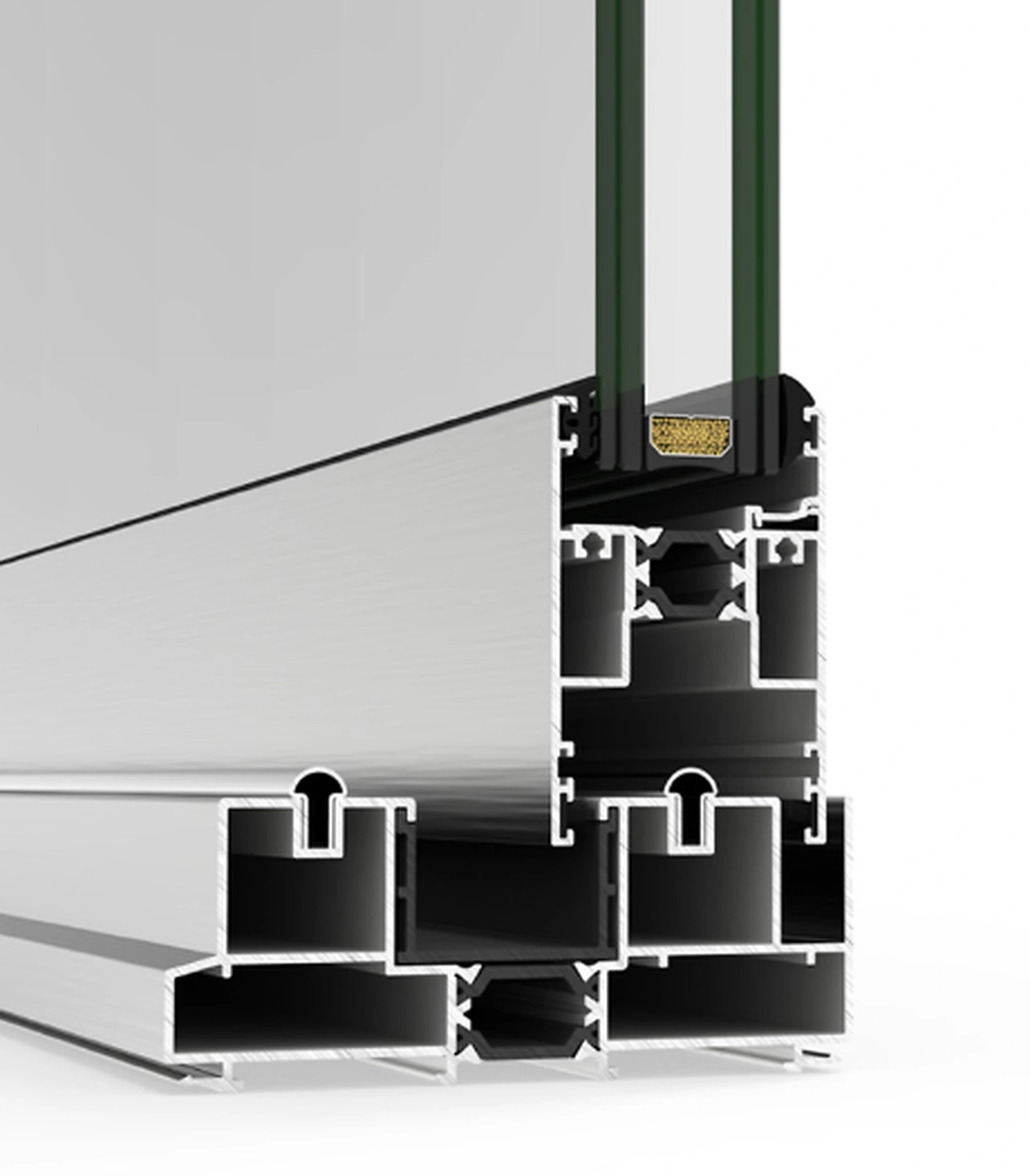

Profile section4700 Sliding
Features

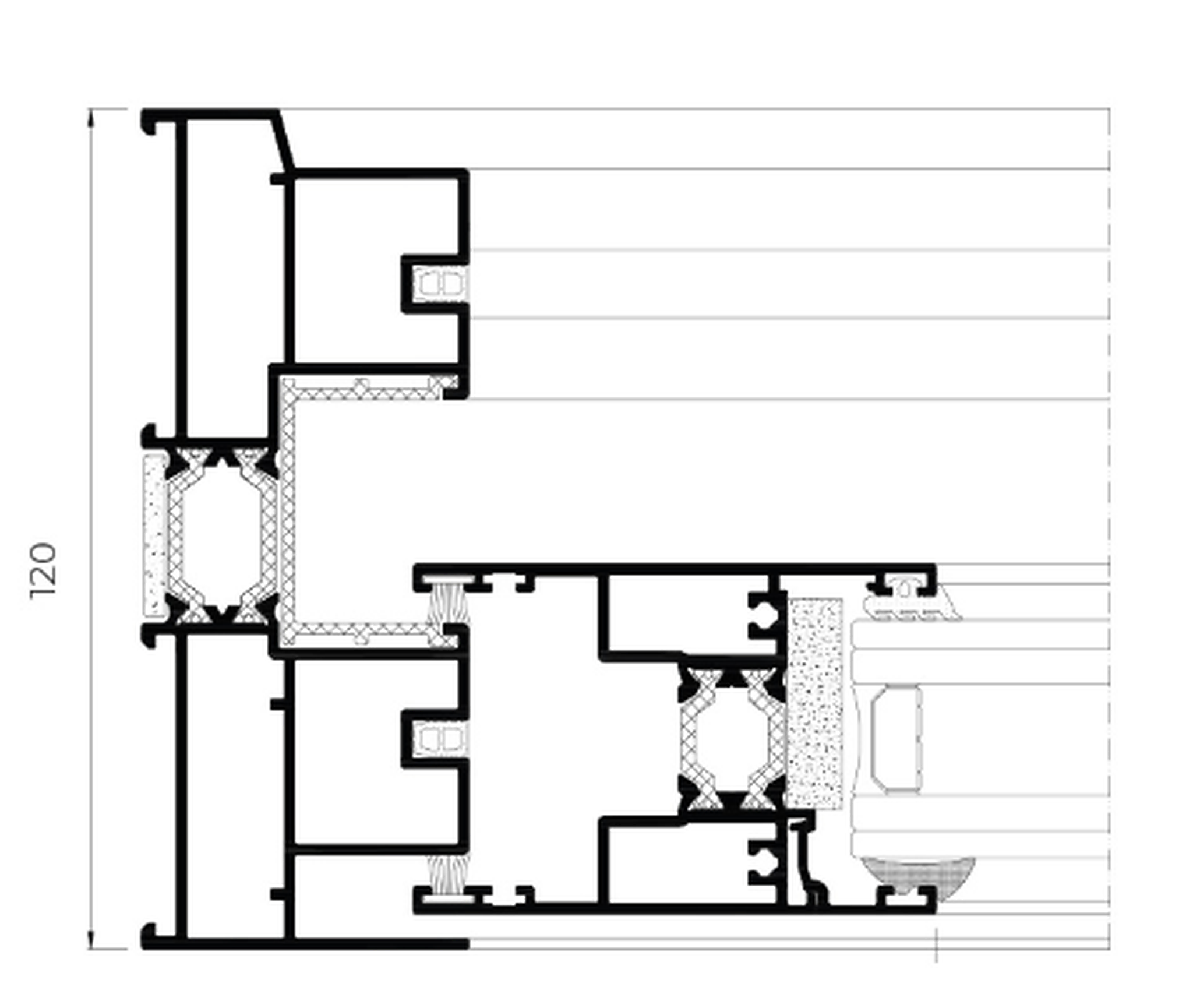

Profile section1 / 3
| Thermal value | Uw ≥ 1.0 W/m²K | |
|---|---|---|
| Acoustic insulation | Rw 40 dB | |
| Air permeability | Class 3 / 4 | |
| Wind resistance | C5 / C2 | |
| Water tightness | Class 7A |
Values depend on dimensions, glazing and configuration. The final specification requires technical validation before quotation.
Profile dimensions+
| Frame sections | 115 / 120 mm · 185 mm (3 tracks) | |
|---|---|---|
| Sash section | 50 mm | |
| Polyamide / thermal break | 20–25 mm | |
| Profile thickness | 1.5 mm |
Glazing and sealing+
| Glazing thickness | 26–36 mm |
|---|
Construction limits+
| Maximum sash size | 2500 × 3000 mm | |
|---|---|---|
| Maximum sash weight | 280 / 300 kg |
- Thermal break where specified
- Powder coating, anodising and bicolour options
- Typologies and limits depend on configuration
- Technical validation before quotation
Finishes
Find your finish.
Painted / RAL
Traffic White
RAL 901601 / 10
Indicative palette, not live stock. Confirm the code, texture and compatibility with a physical sample for the selected system.
Complete palettes
Review the colour documents.
On-screen colour is indicative. Confirm the final choice with a physical sample and the technical configuration.
MAR&PET

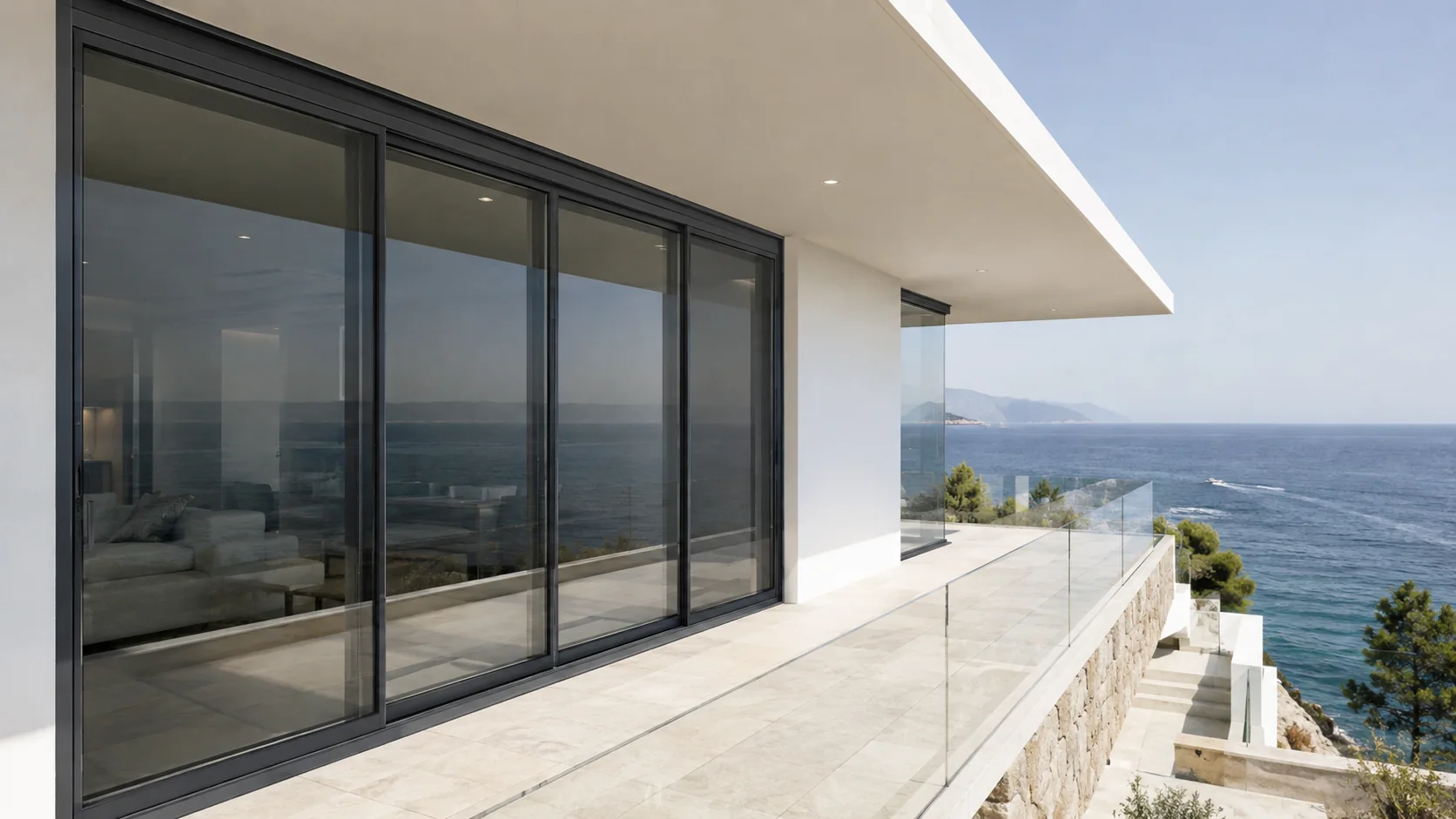

Architectural inspiration
