CORTIZO · Flush entrance door
Millennium Plus 80 Door
80 mm for entrances with presence.
A flush commercial and residential entrance system with 80 mm frame and sash, 34 mm polyamide, 15–64 mm glazing and up to 220 kg per sash.

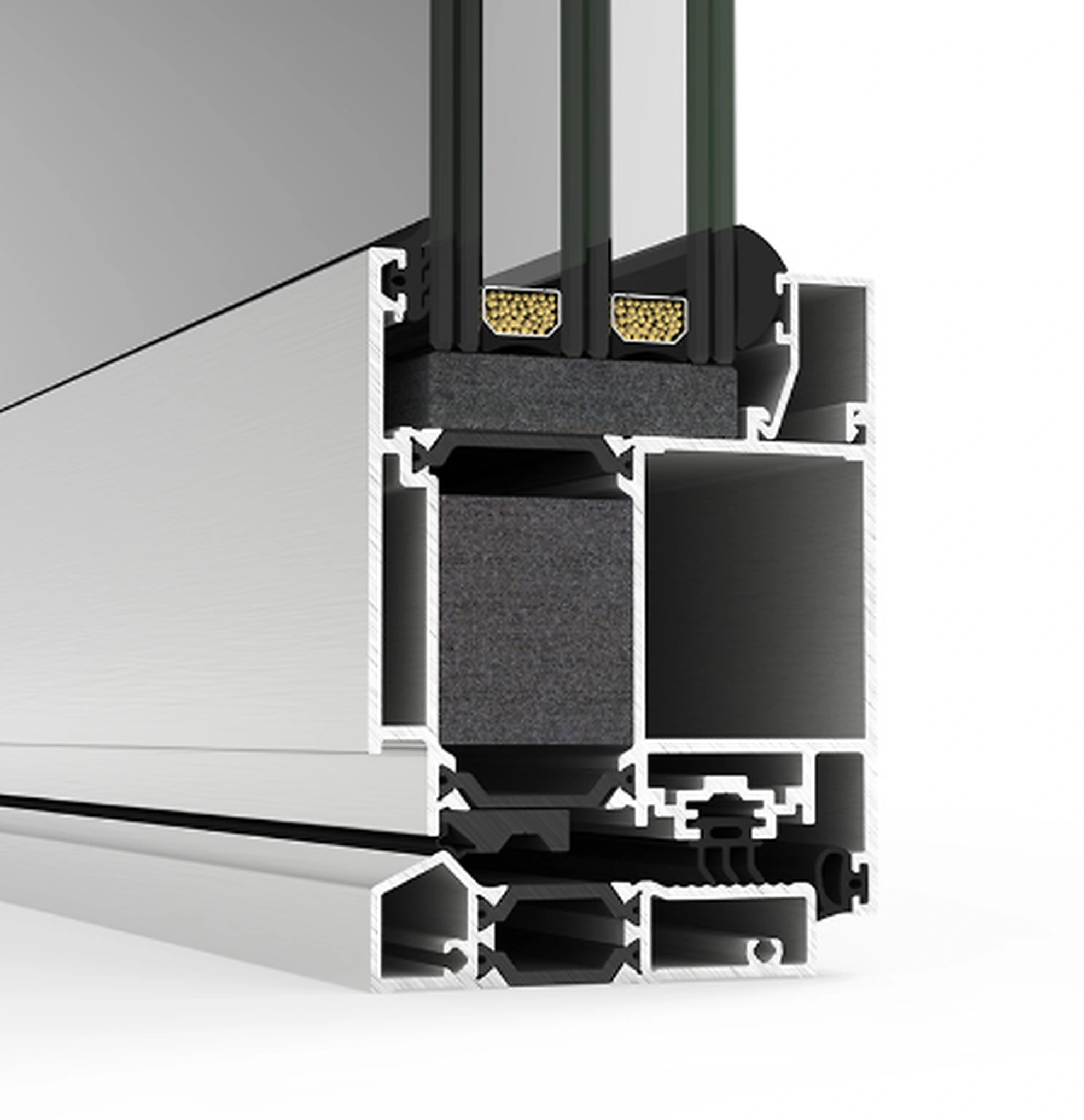

Profile sectionMillennium Plus 80 Door
Features
Validation blocked: official page says Ud, PDF says Uw
Profile section1 / 3
| Acoustic insulation | Rw 40 dB | |
|---|---|---|
| Cycles | 1,000,000 | |
| Security | RC2 | |
| Air permeability | Class 4 | |
| Water tightness | Class 6A | |
| Wind resistance | Class C4 | |
| Durability | 1,000,000 cycles | |
| Burglary resistance | RC2 |
Limits depend on typology. The Ud/Uw discrepancy and ≥ sign require written confirmation before commercial publication.

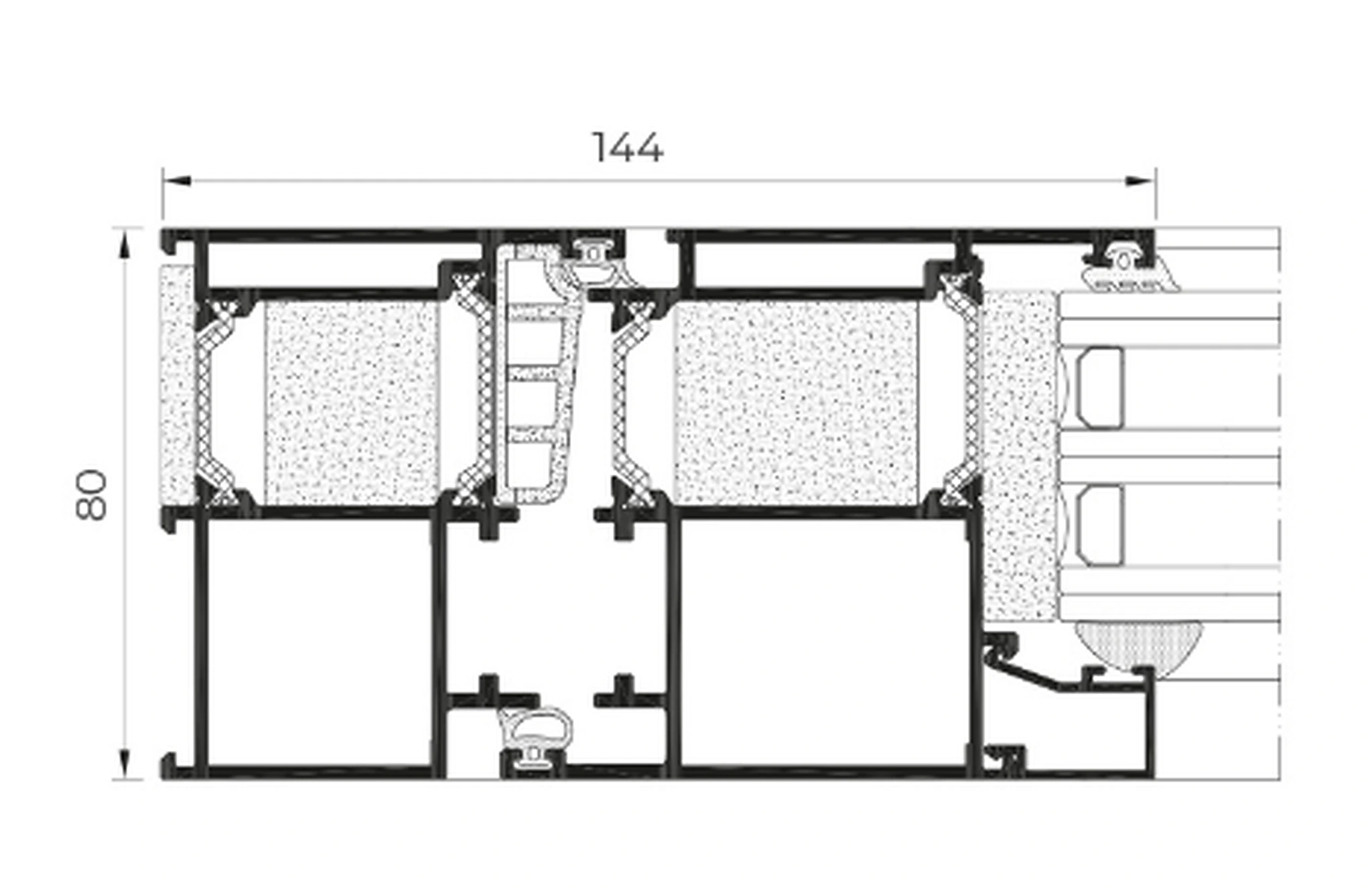

Profile dimensions+
| Frame / sash depth | 80 mm | |
|---|---|---|
| Polyamide / thermal break | 34 mm | |
| Profile thickness | 2 mm |
Glazing and sealing+
| Glazing thickness | 15–64 mm |
|---|
Construction limits+
| Maximum sash size | 1800 × 3000 mm · concealed 1500 × 3000 mm | |
|---|---|---|
| Maximum sash weight | 220 kg |
- 80 mm frame and sash
- 15–64 mm glazing
- Standard sash up to 1,800 × 3,000 mm
- Concealed hinges, accessibility, automation
Finishes
Find your finish.
Painted / RAL
Traffic White
RAL 901601 / 10
Indicative palette, not live stock. Confirm the code, texture and compatibility with a physical sample for the selected system.
Complete palettes
Review the colour documents.
On-screen colour is indicative. Confirm the final choice with a physical sample and the technical configuration.
