CORTIZO · Thermally broken flush door

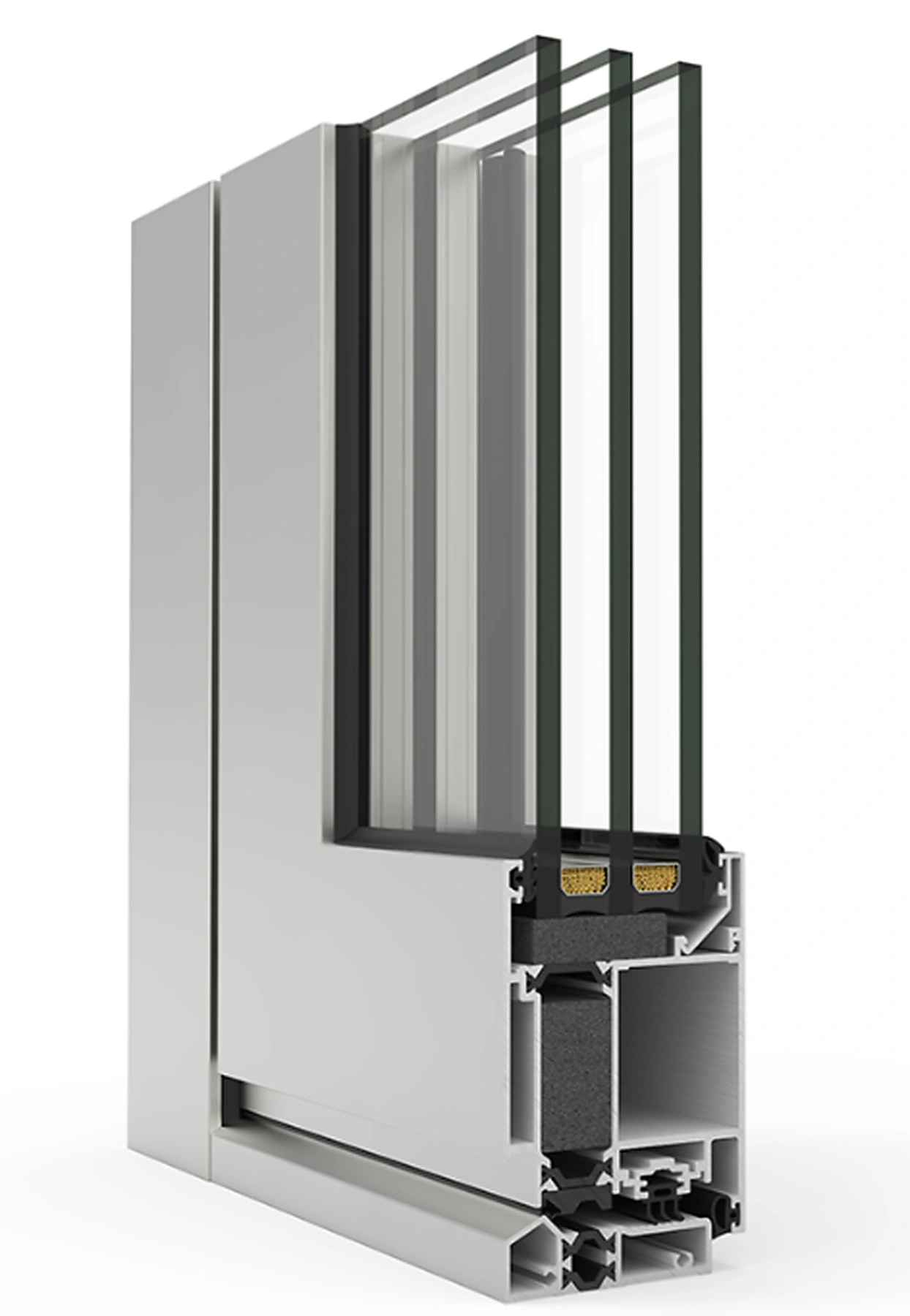

Millennium Plus 70 Door
Heavy traffic, perfectly flush aesthetics.
A 70 mm system with 2 mm profiles, 24 mm polyamides, glazing up to 54 mm and sashes up to 1,800 × 3,000 mm.

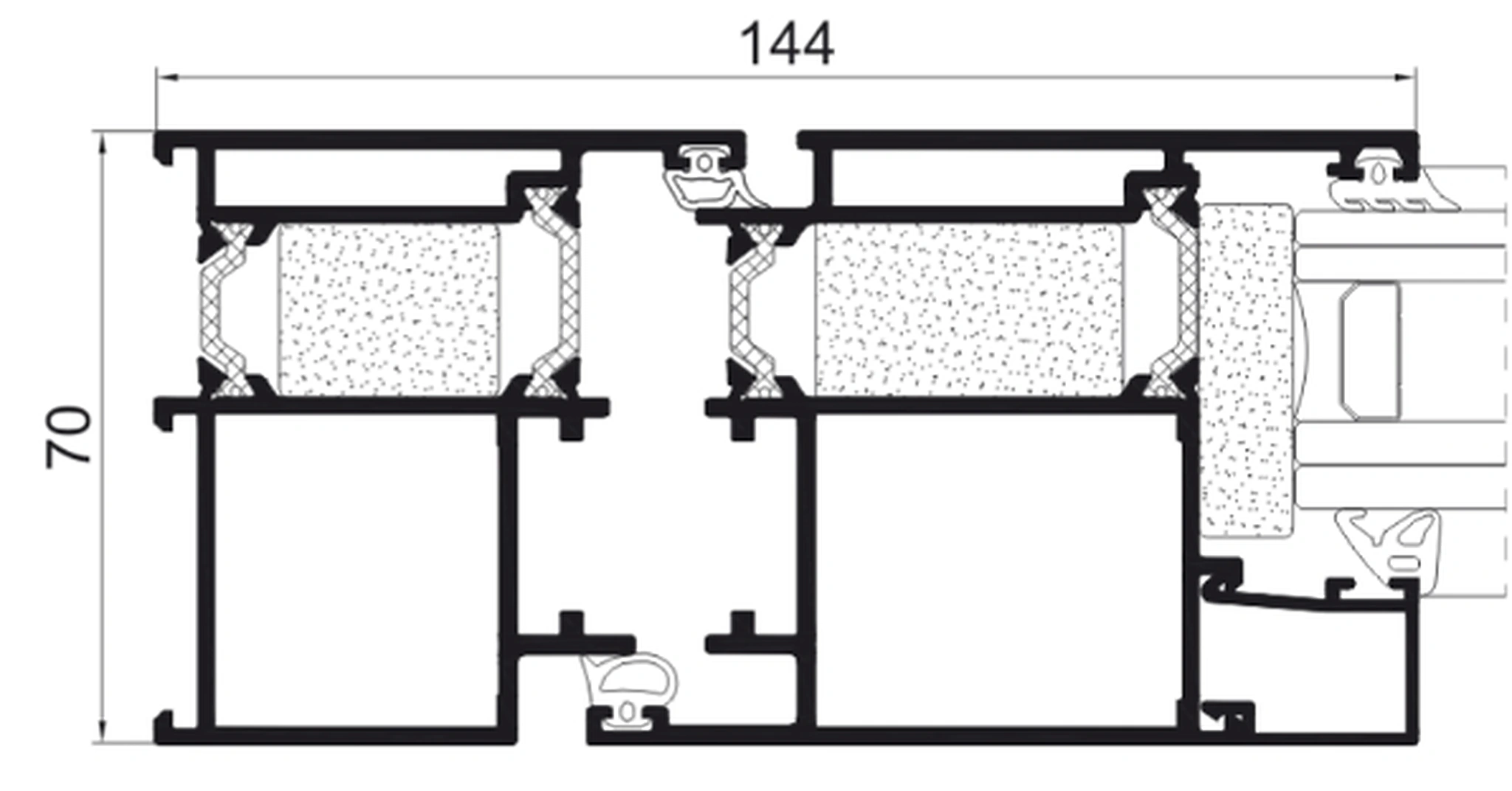

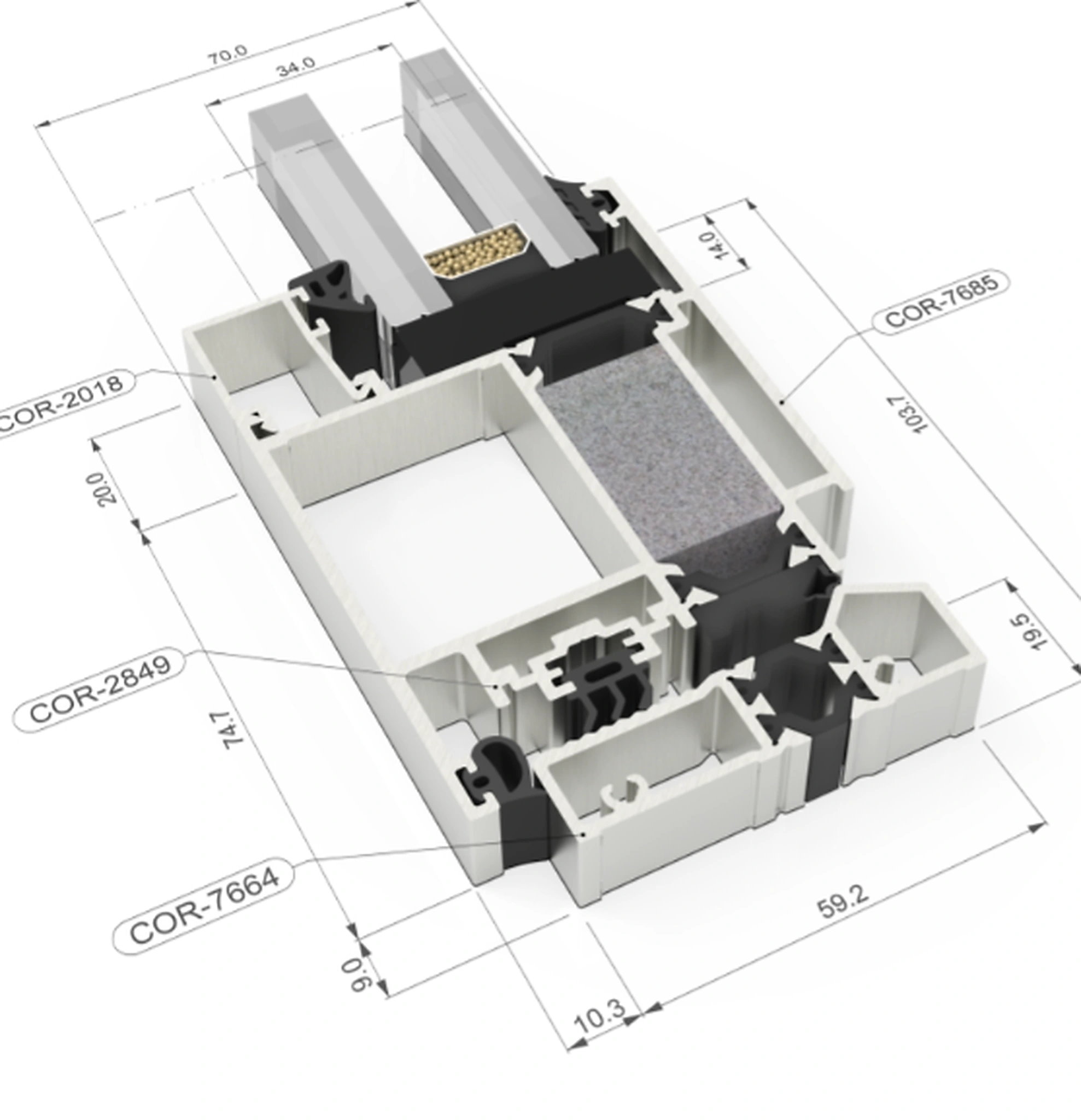

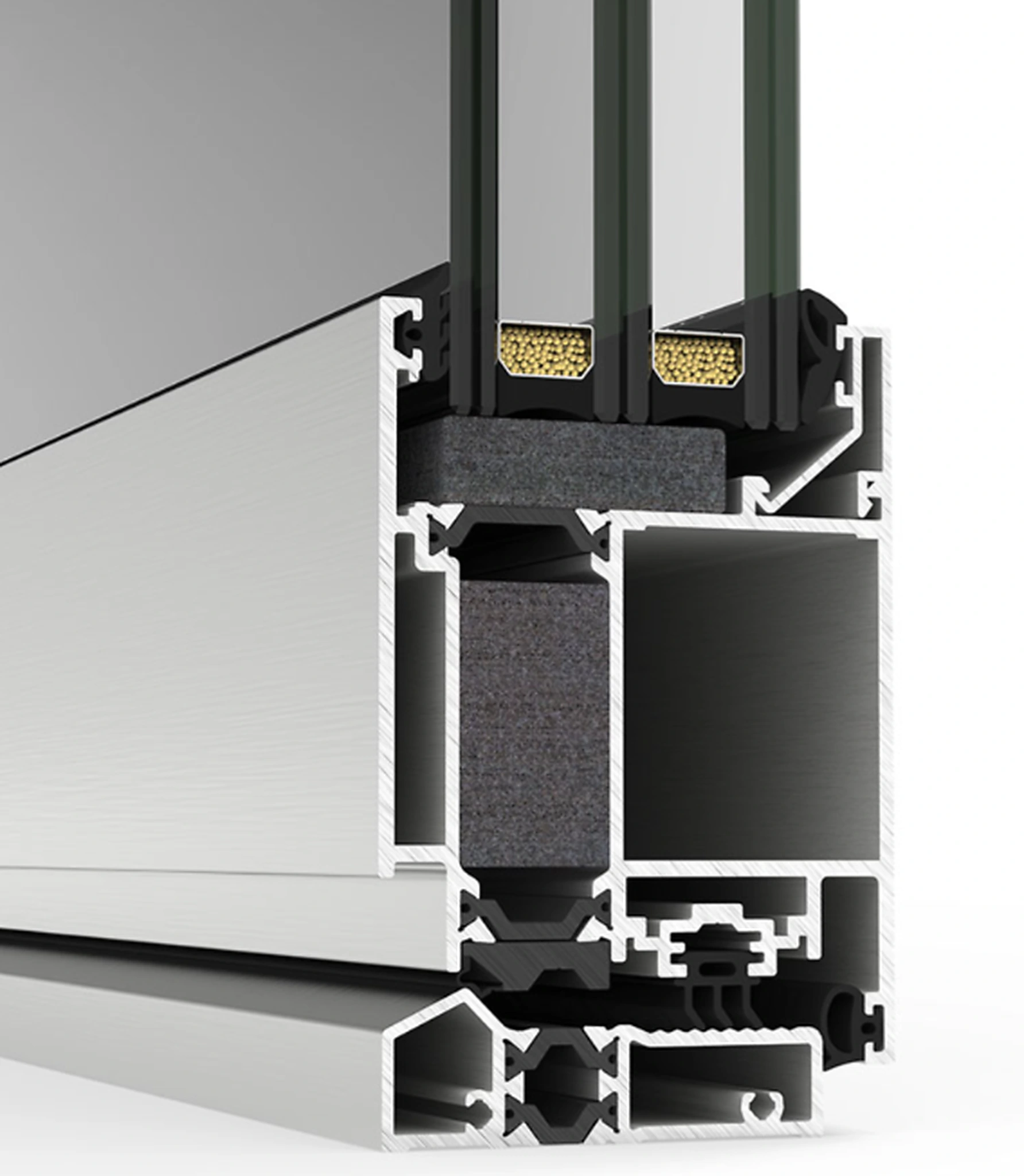

Profile sectionMillennium Plus 70 Door
Features
Profile section1 / 4
| Thermal value | Ud ≥ 0.9 W/m²K | |
|---|---|---|
| Acoustic insulation | Rw 38 dB | |
| Air permeability | Class 4 | |
| Security | RC2 | |
| Water tightness | Class 6A | |
| Wind resistance | Class C4 | |
| Durability | 1,000,000 cycles | |
| Burglary resistance | RC2 |
Values depend on dimensions, glazing and configuration. The final specification requires technical validation before quotation.
Profile dimensions+
| Frame / sash depth | 70 mm | |
|---|---|---|
| Polyamide / thermal break | 24 mm | |
| Profile thickness | 2 mm |
Glazing and sealing+
| Glazing thickness | 15–54 mm |
|---|
Construction limits+
| Maximum sash size | 1800 × 3000 mm · concealed 1500 × 3000 mm | |
|---|---|---|
| Maximum sash weight | 220 kg |
- 70 mm frame and sash
- Glazing up to 54 mm
- Up to 1,000,000 cycles
- Standard or concealed hinges
Finishes
Find your finish.
Painted / RAL
Traffic White
RAL 901601 / 10
Indicative palette, not live stock. Confirm the code, texture and compatibility with a physical sample for the selected system.
Complete palettes
Review the colour documents.
On-screen colour is indicative. Confirm the final choice with a physical sample and the technical configuration.
