CORTIZO · All-glass railing

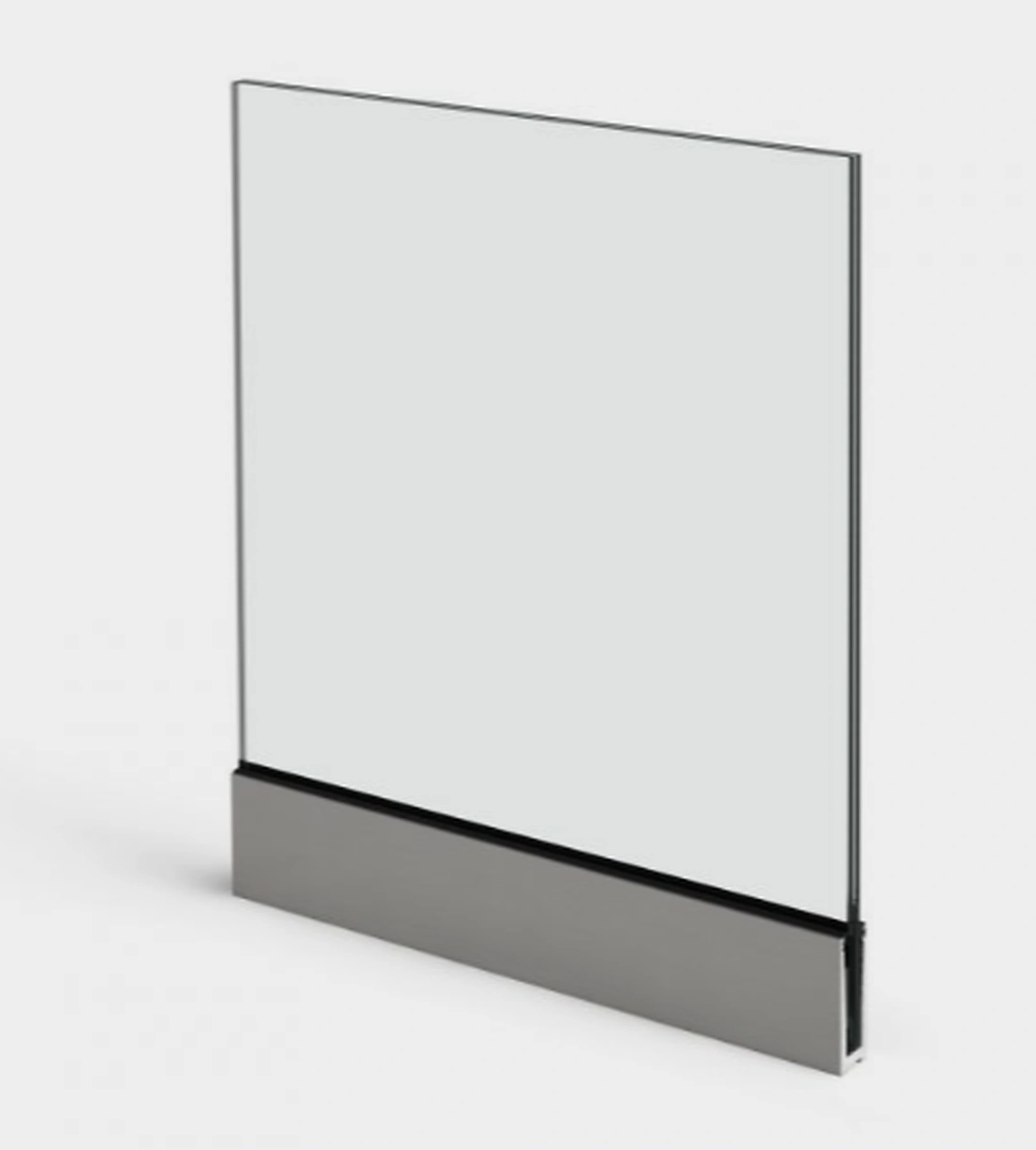

View Crystal Fit Plus
On-site adjustable glass alignment.
A system with adjustable spacers for fast installation and glass alignment, documented for loads up to 3.0 kN/m.

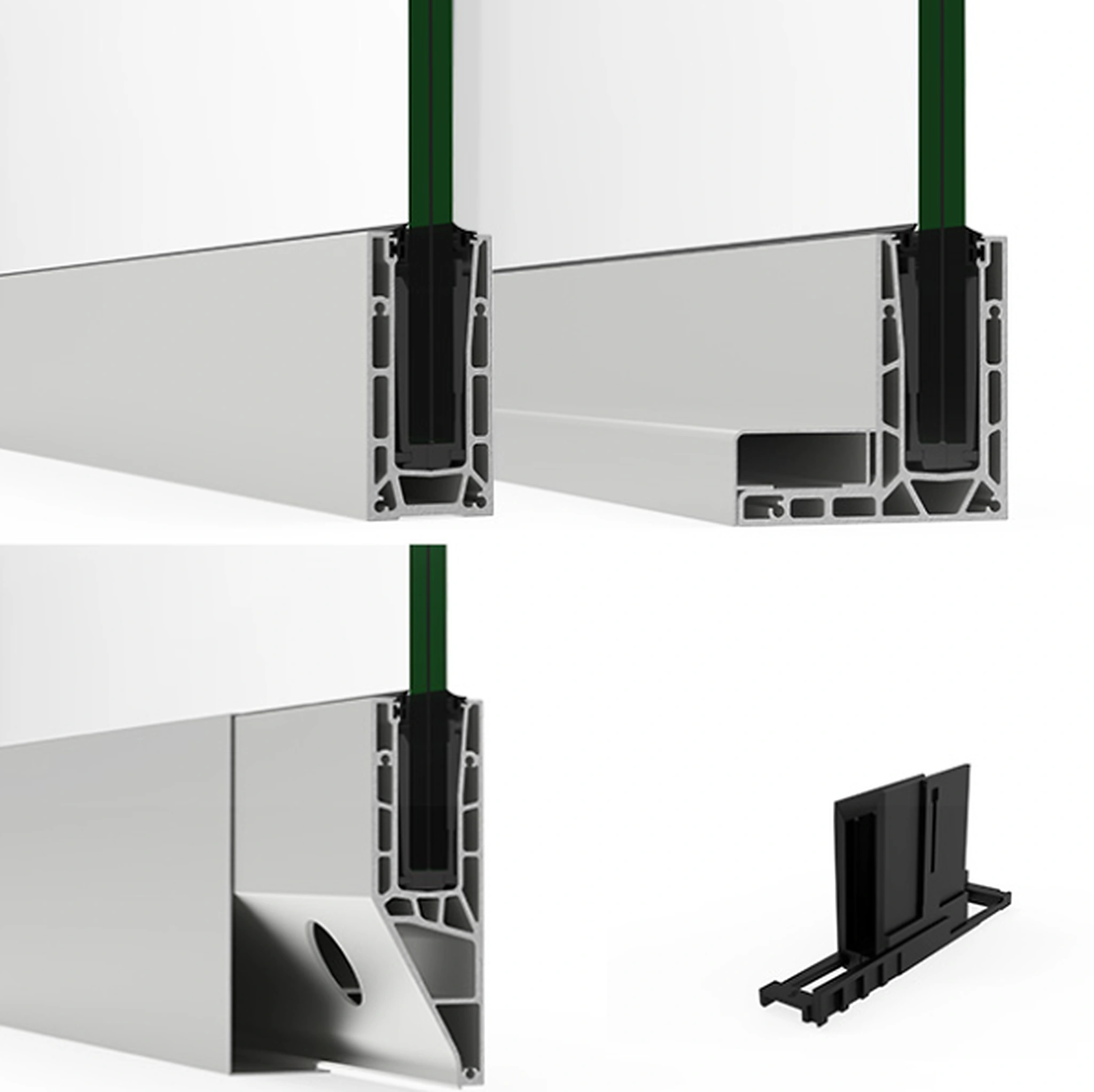

Profile sectionView Crystal Fit Plus
Features
Profile section1 / 2
| Load | 3.0 kN/m | |
|---|---|---|
| Glazing | 6+6 → 10+10 | |
| Classification | Class A | |
| Standard | UNE 85240 | |
| Linear load | 1.0 / 3.0 kN/m |
Values depend on dimensions, glazing and configuration. The final specification requires technical validation before quotation.
Profile dimensions+
| Visible mullion width | system-dependent |
|---|
Glazing and sealing+
| Glass composition | 6 / 8 / 10 mm + laminated PVB |
|---|
Construction limits+
| Maximum height | 1100 mm | |
|---|---|---|
| Opening dimensions | reference module 1100 × 1500 mm |
- Thermal break where specified
- Powder coating, anodising and bicolour options
- Typologies and limits depend on configuration
- Technical validation before quotation
Finishes
Find your finish.
Painted / RAL
Traffic White
RAL 901601 / 10
Indicative palette, not live stock. Confirm the code, texture and compatibility with a physical sample for the selected system.
Complete palettes
Review the colour documents.
On-screen colour is indicative. Confirm the final choice with a physical sample and the technical configuration.
