CORTIZO · Mullion-transom curtain wall
TP 52 Curtain Wall
A 52 mm visible structural grid.

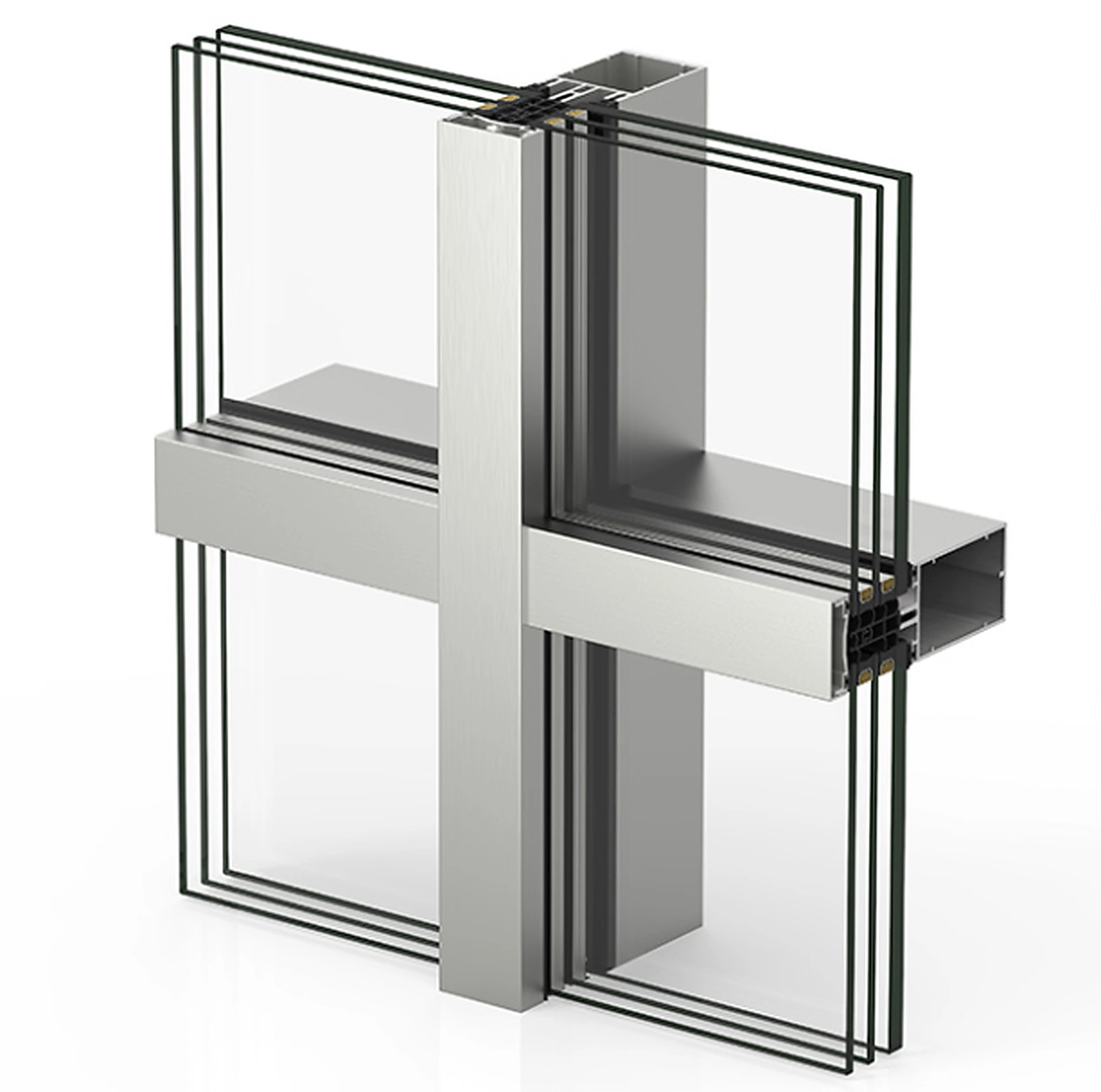

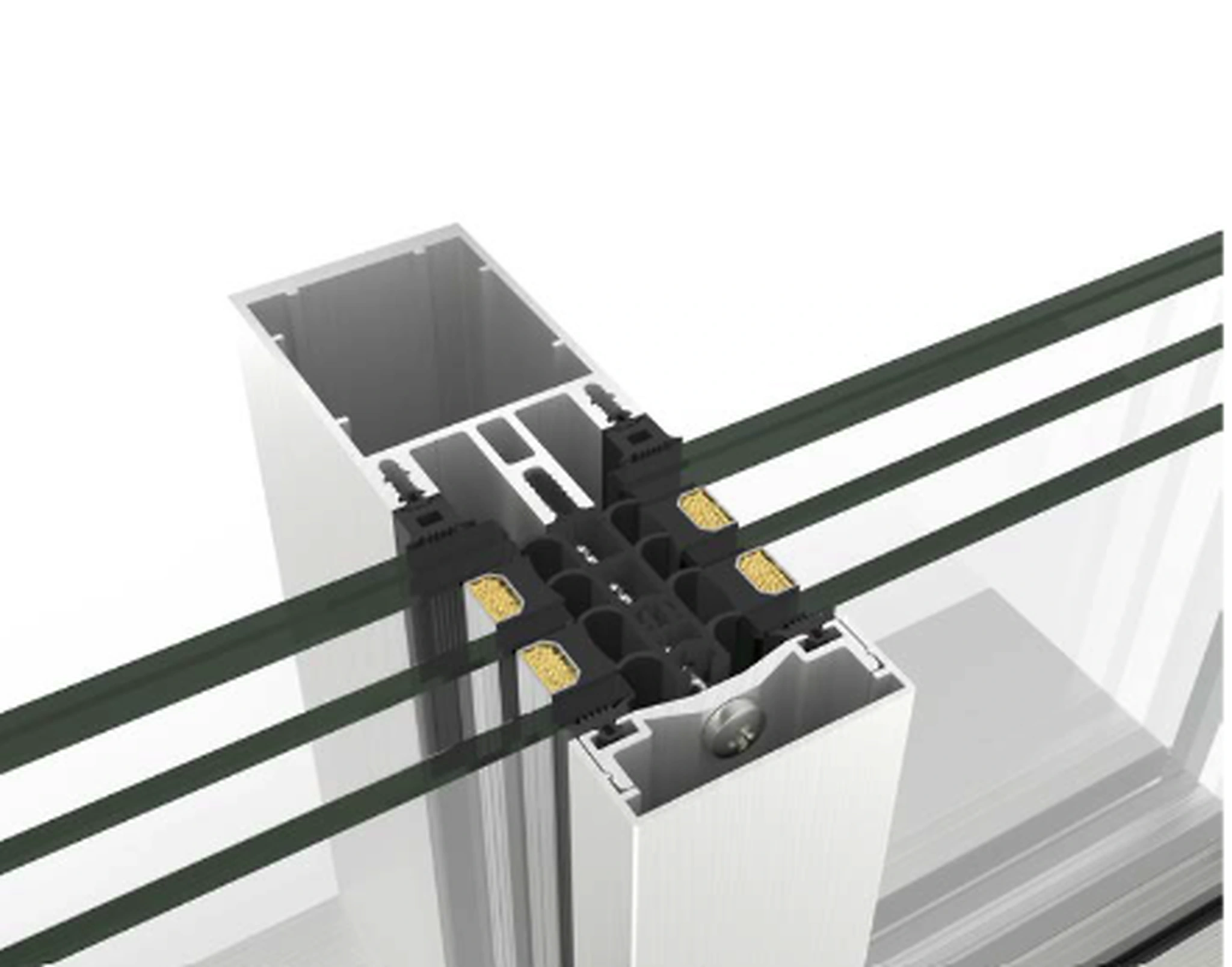

A light façade with 52 mm mullions and transoms, continuous glazing pressure profile and exterior cover cap.

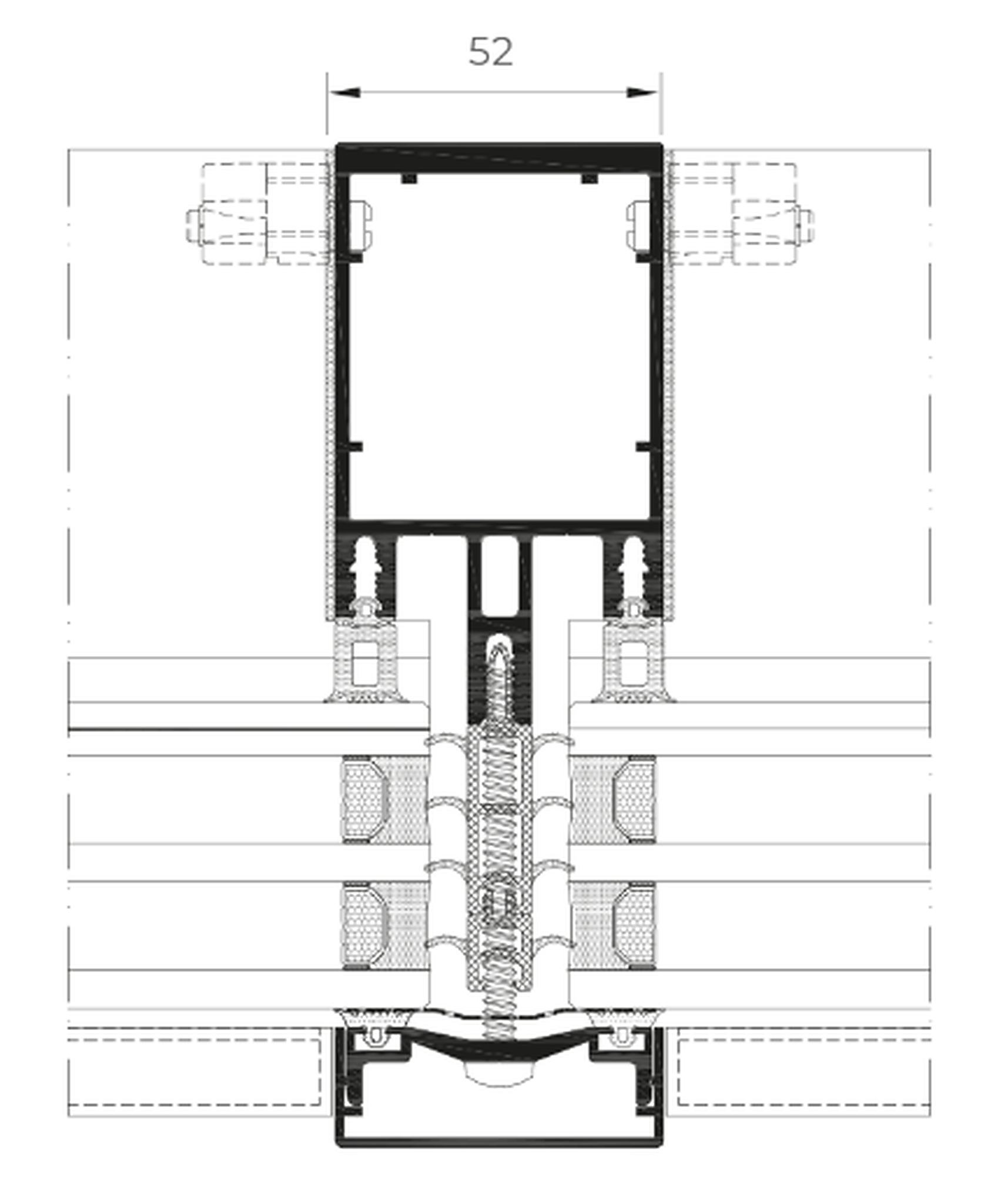

Profile sectionTP 52 Curtain Wall
Features
Profile section1 / 4
| Thermal value | Ucw ≥ 0.6 W/m²K | |
|---|---|---|
| Air permeability | AE | |
| Water tightness | RE1350 | |
| Visible section | 52 mm |
Values depend on dimensions, glazing and configuration. The final specification requires technical validation before quotation.
Profile dimensions+
| Visible mullion width | 52 mm | |
|---|---|---|
| Profile thickness | mullion 2.1 / 3.0 mm · transom 2.1 mm |
Glazing and sealing+
| Glazing thickness | 4–64 mm |
|---|
Construction limits+
| Opening dimensions | projected 500–2500 × 650–2500 mm · parallel 450–1500 × 650–3000 mm · hidden tilt-turn 500–1400 × 600–1900 mm | |
|---|---|---|
| Maximum sash weight | 200 / 180 / 100 kg · fixed 750 kg |
- Thermal break where specified
- Powder coating, anodising and bicolour options
- Typologies and limits depend on configuration
- Technical validation before quotation
Finishes
Find your finish.
Painted / RAL
Traffic White
RAL 901601 / 10
Indicative palette, not live stock. Confirm the code, texture and compatibility with a physical sample for the selected system.
Complete palettes
Review the colour documents.
On-screen colour is indicative. Confirm the final choice with a physical sample and the technical configuration.
